What change must the administrator make to the hub BGP configuration so that the routes learned by one spoke are forwarded to the other spokes?

Exhibits:

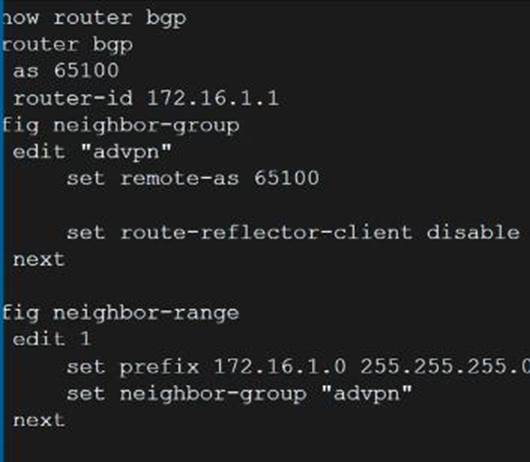

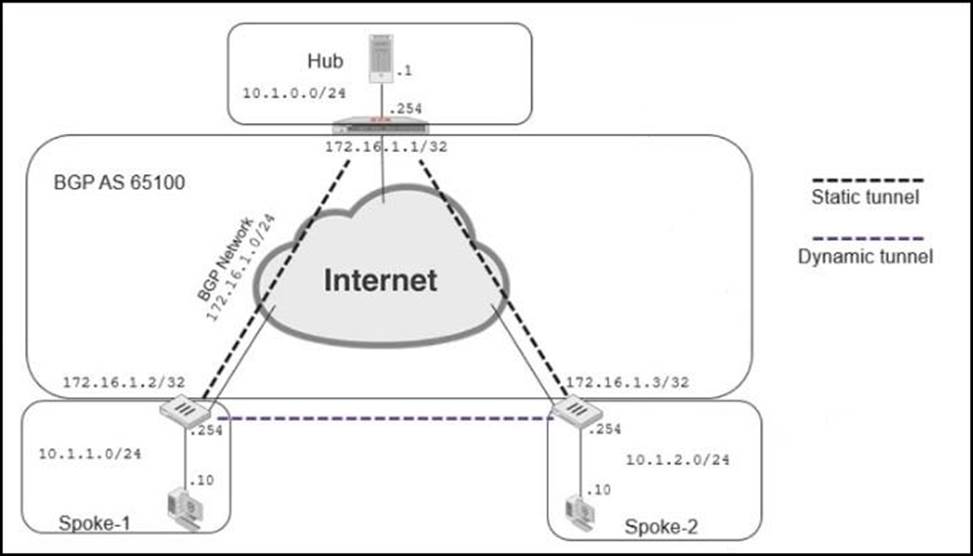

Refer to the exhibits, which contain the network topology and BGP configuration for a hub.

An administrator is trying to configure ADVPN with a hub-spoke VPN setup using iBGP. All the VPNs are up and connected to the hub. The hub is receiving route information from both spokes over iBGP; however, the spokes are not receiving route information from each other.

What change must the administrator make to the hub BGP configuration so that the routes learned by one spoke are forwarded to the other spokes?
A . Configure an individual neighbor and remove neighbor-range configuration.
B. Configure the hub as a route reflector client.
C. Change the router id to 10.1.0.254.
D. Make the configuration of remote-as different from the configuration of local-as.

Answer: B

Explanation:

Source: https://community.fortinet.com/t5/FortiGate/Technical-Tip-Configuring-BGP-route-reflector/ta-p/191503 Source 2: RFC 4456
