HSRP Case

You have been asked by your customer to help resolve issues in their routed network. Their network engineer has deployed HSRP. On closer inspection HSRP doesn’t appear to be operating properly and it appears there are other network problems as well. You are to provide solutions to all the network problems.

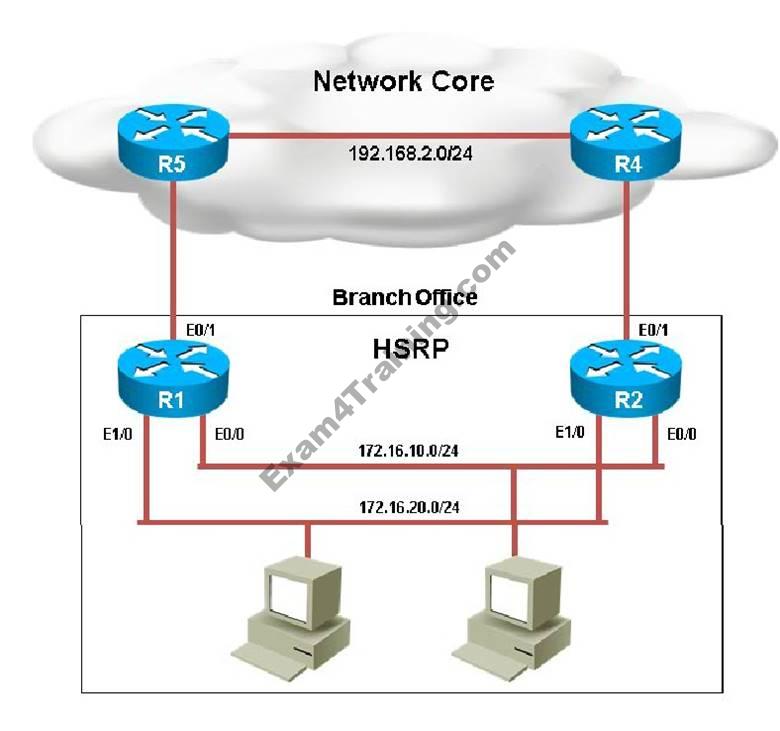

You have received notification from network monitoring system that link between R1 and R5 is down and you noticed that the active router for HSRP group 1 has not failed over to the standby router for group 1. You are required to troubleshoot and identify the issue.
A . There is an HSRP group track command misconfiguration
B . There is an HSRP group priority misconfiguration
C . There is an HSRP authentication misconfiguration
D . There is an HSRP group number mismatch
E . This is not an HSRP issue; this is routing issue.

Answer: A

Explanation:

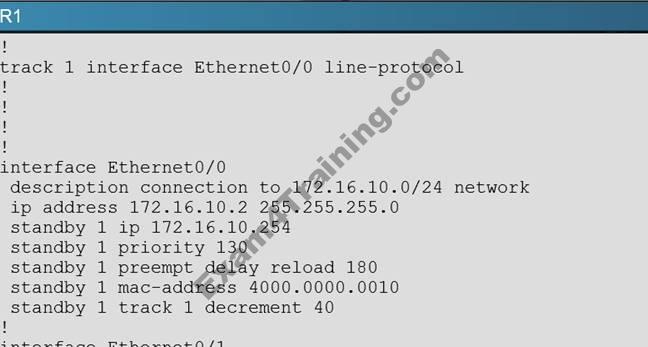

When looking at the HSRP configuration of R1, we see that tracking has been enabled, but that it is not tracking the link to R5, only the link to R2:

R1 should be tracking the Eth 0/1 link, not 0/0 to achieve the desired affect.
