Which configuration would improve the wireless connection?

Refer to the exhibits.

Exhibit.

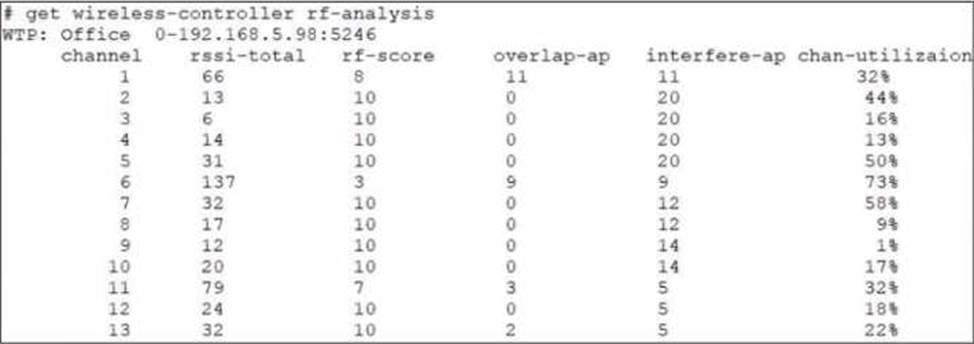

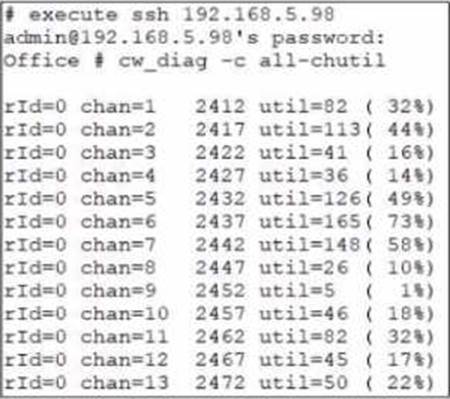

Examine the troubleshooting outputs shown in the exhibits

Users have been reporting issues with the speed of their wireless connection in a particular part of the wireless network The interface that is having issues is the 2 4 GHz interface that is currently configured on channel 6

The administrator of the wireless network has investigated and surveyed the local RF environment using the tools available at the AP and FortiGate

Which configuration would improve the wireless connection?
A . Change the AP 2 4 GHz channel to 11
B . Change the AP 2 4 GHz channel to 1.
C . Change the AP 2 4 GHz channel to 9.
D . Change the AP 2 4 GHz channel to 13.

View Answer

Answer: B

Explanation:

According to the exhibits, the AP 2.4 GHz interface is currently configured on channel 6, which is overlapping with other nearby APs on channels 4 and 8. This can cause interference and reduce the wireless performance. Therefore, changing the AP 2.4 GHz channel to 1 would improve the wireless connection, as it would avoid the overlapping channels and use a non-overlapping channel instead. Option A is false because changing the AP 2.4 GHz channel to 11 would still overlap with other nearby APs on channels 9 and 13. Option C is false because changing the AP 2.4 GHz channel to 9 would still overlap with other nearby APs on channels 6, 8, and 11. Option D is false because changing the AP 2.4 GHz channel to 13 would still overlap with other nearby APs on channels 9 and 11.
