Which configuration action on either router will allow R1 and R2 to progress past the "EXSTART/DR" state?

Exhibit.

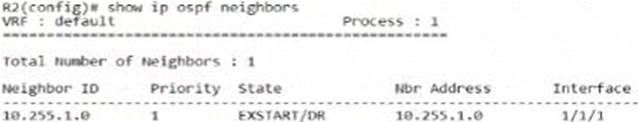

An engineer has applied the above configuration to R1 and R2 However the routers OSPF adjacency never progresses past the "EXSTART-DR" slate as shown below.

Which configuration action on either router will allow R1 and R2 to progress past the "EXSTART/DR" state?
A . Change R1 and R2 to a network type of point-to-point.
B . Remove the layer 3 MTU configuration.
C . Ensure the OSPF process is not configured with passive-interface default.
D . Change the IP address and mask applied to interface 1/1/1.

View Answer

Answer: A

Explanation:

In OSPF, the "EXSTART/DR" state indicates that the routers are trying to establish an adjacency but are unable to progress. This can happen if the OSPF network type is incorrectly configured for the type of connection between the routers. Given that R1 and R2 are connected via a point-to-point link (as suggested by the /31 subnet), setting the network type to point-to-point on both routers will remove the need for DR/BDR election, which is unnecessary on a point-to-point link, and allow OSPF to progress past the "EXSTART" state and form a full adjacency.
