Which command should you run?

Your company has a main office and four branch offices. The main office contains a server named Server1 that runs Windows Server 2012 R2.

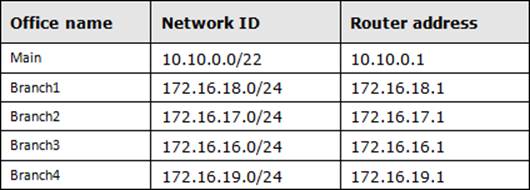

The IP configuration of each office is configured as shown in the following table.

You need to add a single static route on Server1 to ensure that Server1 can communicate with the hosts on all of the subnets.

Which command should you run?
A . route.exe add -p 10.10.0.0 mask 255.255.252.0 10.10.0.1
B . route.exe add -p 172.16.16.0 mask 255.255.252.0 10.10.0.1
C . route.exe add -p 10.10.0.0 mask 255.255.252.0 172.16.0.0
D . route.exe add -p 172.16.18.0 mask 255.255.252.0 10.10.0.1

Answer: B

Explanation:

These parameters will allow communication with all the hosts.

References:

Exam Ref: 70-410: Installing and Configuring Windows Server 2012 R2, Chapter4: Deploying and configuring core network services, Objective 4.1: Configure IPv4 and IPv6 addressing, p.192, 196
