Which action may help fix the issue?

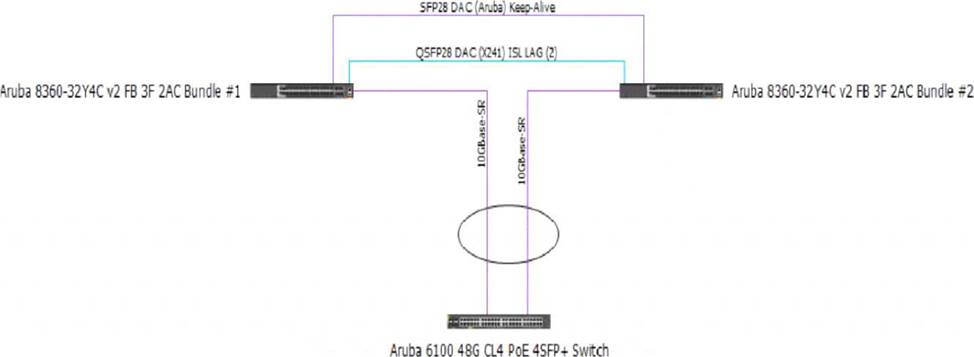

Review the exhibit.

You are troubleshooting an issue with a 10 102.39 0/24 subnet which is also VLAN 1000 used Tor wireless clients on a pair of Aruba CX 8360 switches The subnet SVI is configured on the 8360 pair, and the DHCP server is a Microsoft Windows Server 2022 Standard with an IP address of 10 200 1.100. The 10.102.250.0/24 subnet is used for switch management.

A large number of DHCP requests are failing You are observing sporadic DHCP behavior across clients

attached to the CX 6100 switch.

Which action may help fix the issue?

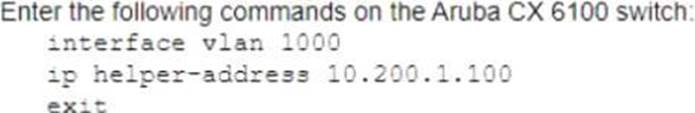

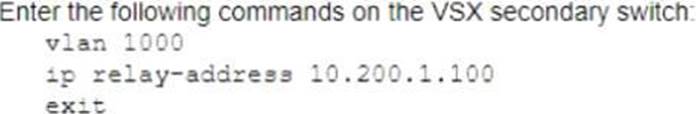

A)

B)

C)

D)

A . Option A
B . Option B
C . Option C
D . Option D

View Answer

Answer: B

Explanation:

Option B is the correct action that may help fix the issue of sporadic DHCP behavior across clients attached to the CX 6100 switch. Option B enables DHCP relay on VLAN 1000 interface on Core-1 switch, which allows DHCP requests from clients in VLAN 1000 to be forwarded to the DHCP server in a different subnet (10.200.1.100). Without DHCP relay, clients in VLAN 1000 cannot obtain IP addresses from the DHCP server because they are in different broadcast domains. The other options are incorrect because they either do not enable DHCP relay or do not configure it correctly.

References:

https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch02.html

https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6728/bk01-ch03.html
