AZ-305 V4

HOTSPOT

You plan to deploy an Azure web app named Appl that will use Azure Active Directory (Azure AD) authentication.

App1 will be accessed from the internet by the users at your company. All the users have computers that run Windows 10 and are joined to Azure AD.

You need to recommend a solution to ensure that the users can connect to App1 without being prompted for authentication and can access App1 only from company-owned computers.

What should you recommend for each requirement? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Graphical user interface, text, application, chat or text message

Description automatically generated

Box 1: An Azure AD app registration

Azure active directory (AD) provides cloud based directory and identity management services.You can use azure AD to manage users of your application and authenticate access to your applications using azure active directory.

You register your application with Azure active directory tenant.

Box 2: A conditional access policy

Conditional Access policies at their simplest are if-then statements, if a user wants to access a resource, then they must complete an action.

By using Conditional Access policies, you can apply the right access controls when needed to keep your organization secure and stay out of your user’s way when not needed.

Timeline

Description automatically generated

Your company currently has an application that is hosted on their on-premises environment. The application currently connects to two databases in the on-premises environment. The databases are named whizlabdb1 and whizlabdb2.

You have to move the databases onto Azure. The databases have to support server-side transactions across both of the databases.

Solution: You decide to deploy the databases to an Azure SQL database-managed instance.

Would this fulfill the requirement?
A . Yes
B. No

View Answer

Answer: A

You have an Azure Data Lake Storage account that contains 1,000 10-MB CSV files and an Azure Synapse Analytics dedicated SQL pool named sql1. You need to load the files to sql1.

The solution must meet the following requirements:

✑ Maximize data load performance.

✑ Eliminate the need to define external tables before the data loads.

What should you use?
A . the copy statement
B. PolyBase
C. BCP
D. the sqlBulkcopy object

View Answer

Answer: B

You have an Azure subscription.

Your on-premises network contains a file server named Server1. Server 1 stores 5 TB of company files that are accessed rarely.

You plan to copy the files to Azure Storage.

You need to implement a storage solution for the files that meets the following requirements:

• The files must be available within 24 hours of being requested.

• Storage costs must be minimized.

Which two possible storage solutions achieve this goal? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.
A . Create a general-purpose v1 storage account. Create a blob container and copy the files to the blob container.
B. Create a general-purpose v2 storage account that is configured for the Hot default access tier. Create a blob container, copy the files to the blob container, and set each file to the Archive access tier.
C. Create a general-purpose v1 storage account. Create a file share in the storage account and copy the files to the file share.
D. Create a general-purpose v2 storage account that is configured for the Cool default access tier. Create a file share in the storage account and copy the files to the file share.
E. Create an Azure Blob storage account that is configured for the Cool default access tier. Create a blob container, copy the files to the blob container, and set each file to the Archive access tier.

View Answer

Answer: B,E

Explanation:

https://docs.microsoft.com/en-us/azure/storage/blobs/manage-access-tier?tabs=portal

DRAG DROP

You plan to import data from your on-premises environment to Azure.

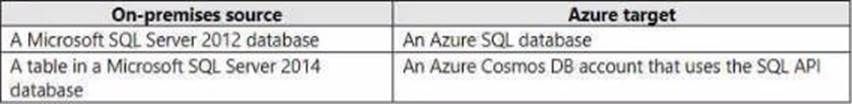

The data Is shown in the following table.

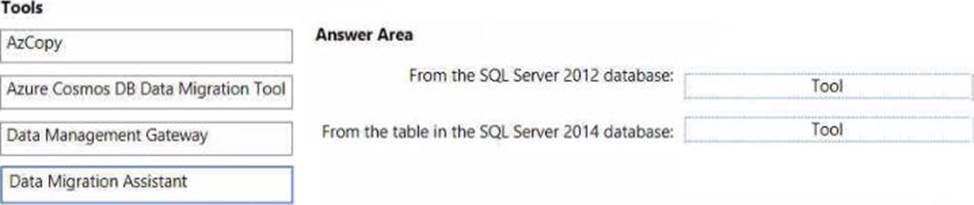

What should you recommend using to migrate the data? To answer, drag the appropriate tools to the correct data sources-Each tool may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

View Answer

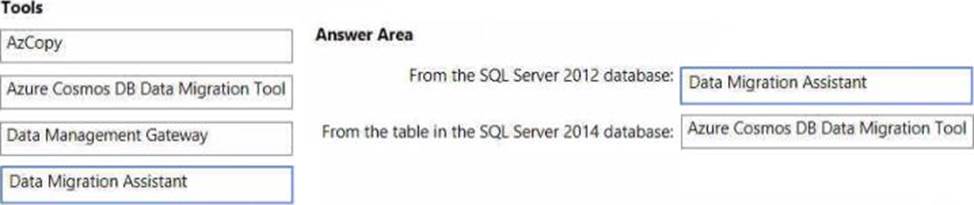

Answer:

Explanation:

References:

https://docs.microsoft.com/en-us/azure/dms/tutorial-sql-server-to-azure-sql

https://docs.microsoft.com/en-us/azure/cosmos-db/import-data

HOTSPOT

Your company deploys an Azure App Service Web App.

During testing the application fails under load. The application cannot handle more than 100 concurrent user sessions. You enable the Always On feature. You also configure auto-scaling to increase counts from two to 10 based on HTTP queue length.

You need to improve the performance of the application.

Which solution should you use for each application scenario? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Graphical user interface, text

Description automatically generated with medium confidence

Box 1: Content Delivery Network

A content delivery network (CDN) is a distributed network of servers that can efficiently deliver web content to users. CDNs store cached content on edge servers in point-of-presence (POP) locations that are close to end users, to minimize latency.

Azure Content Delivery Network (CDN) offers developers a global solution for rapidly delivering high-bandwidth content to users by caching their content at strategically placed physical nodes across the world. Azure CDN can also accelerate dynamic content, which cannot be cached, by leveraging various network optimizations using CDN POPs. For example, route optimization to bypass Border Gateway Protocol (BGP).

Box 2: Azure Redis Cache

Azure Cache for Redis is based on the popular software Redis. It is typically used as a cache to improve the performance and scalability of systems that rely heavily on backend data-stores. Performance is improved by temporarily copying frequently accessed data to fast storage located close to the application. With Azure Cache for Redis, this fast storage is located in-memory with Azure Cache for Redis instead of being loaded from disk by a database.

References: https://docs.microsoft.com/en-us/azure/azure-cache-for-redis/cache-overview

DRAG DROP

You need to configure an Azure policy to ensure that the Azure SQL databases have TDE enabled. The solution must meet the security and compliance requirements.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

View Answer

Answer:

Explanation:

A picture containing text

Description automatically generated

Scenario: All Azure SQL databases in the production environment must have Transparent Data Encryption (TDE) enabled.

Step 1: Create an Azure policy definition that uses the deployIfNotExists identity.

The first step is to define the roles that deployIfNotExists and modify needs in the policy definition to successfully deploy the content of your included template.

Step 2: Create an Azure policy assignment

When creating an assignment using the portal, Azure Policy both generates the managed identity and grants it the roles defined in roleDefinitionIds.

Step 3: Invoke a remediation task

Resources that are non-compliant to a deployIfNotExists or modify policy can be put into a compliant state through Remediation. Remediation is accomplished by instructing Azure Policy to run the deployIfNotExists effect or the modify operations of the assigned policy on your existing resources and subscriptions, whether that assignment is to a management group, a subscription, a resource group, or an individual resource.

During evaluation, the policy assignment with deployIfNotExists or modify effects determines if there are non-compliant resources or subscriptions. When non-compliant resources or subscriptions are found, the details are provided on the Remediation page.

HOTSPOT

You need to recommend a solution to ensure that App1 can access the third-party credentials and access strings. The solution must meet the security requirements.

What should you include in the recommendation? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Graphical user interface, text, application, table

Description automatically generated

Scenario: Security Requirement

All secrets used by Azure services must be stored in Azure Key Vault.

Services that require credentials must have the credentials tied to the service instance. The credentials must NOT be shared between services.

Box 1: A service principal

A service principal is a type of security principal that identifies an application or service, which is to say, a piece of code rather than a user or group. A service principal’s object ID is known as its client ID and acts like its username. The service principal’s client secret acts like its password.

Note: Authentication with Key Vault works in conjunction with Azure Active Directory (Azure AD), which is responsible for authenticating the identity of any given security principal.

A security principal is an object that represents a user, group, service, or application that’s requesting access to Azure resources. Azure assigns a unique object ID to every security principal.

Box 2: A role assignment

You can provide access to Key Vault keys, certificates, and secrets with an Azure role-based access control.

You plan to migrate data to Azure.

The IT department at your company identifies the following requirements:

✑ The storage must support 1 PB of data.

✑ The data must be stored in blob storage.

✑ The storage must support three levels of subfolders.

✑ The storage must support access control lists (ACLs).

You need to meet the requirements.

What should you use?
A . a premium storage account that is configured for block blobs
B. a general purpose v2 storage account that has hierarchical namespace enabled
C. a premium storage account that is configured for page blobs
D. a premium storage account that is configured for files shares and supports large file shares

View Answer

Answer: B

Explanation:

Microsoft recommends that you use a GPv2 storage account for most scenarios. It supports up to 5 PB, and blob storage including Data Lake storage.

Note: A key mechanism that allows Azure Data Lake Storage Gen2 to provide file system performance at object storage scale and prices is the addition of a hierarchical namespace. This allows the collection of objects/files within an account to be organized into a hierarchy of directories and nested subdirectories in the same way that the file system on your computer is organized. With a hierarchical namespace enabled, a storage account becomes capable of providing the scalability and cost-effectiveness of object storage, with file system semantics that are familiar to analytics engines and frameworks.

References:

https://docs.microsoft.com/en-us/azure/storage/common/storage-account-overview

https://docs.microsoft.com/en-us/azure/storage/blobs/data-lake-storage-namespace

You plan to deploy an application named App1 that will run on five Azure virtual machines.

Additional virtual machines will be deployed later to run App1.

You need to recommend a solution to meet the following requirements for the virtual machines that will run App1:

✑ Ensure that the virtual machines can authenticate to Azure Active Directory (Azure AD) to gain access to

✑ an Azure key vault, Azure Logic Apps instances, and an Azure SQL database.

✑ Avoid assigning new roles and permissions for Azure services when you deploy additional virtual machines.

✑ Avoid storing secrets and certificates on the virtual machines.

Which type of identity should you include in the recommendation?
A . a service principal that is configured to use a certificate
B. a system-assigned managed identity
C. a service principal that is configured to use a client secret
D. a user-assigned managed identity

View Answer

Answer: D

Explanation:

Managed identities for Azure resources is a feature of Azure Active Directory. User-assigned managed identity can be shared. The same user-assigned managed identity can be associated with more than one Azure resource.

Reference: https://docs.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/overview
