Which sequence of actions will be executed?

Choose the correct answer.

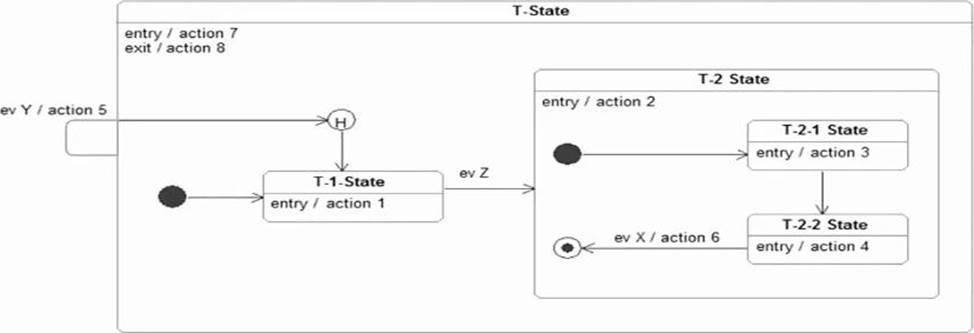

Assume the following state machine is In the T-1 State when ev Z occurs:

Subsequently ev Voccurs.

Which sequence of actions will be executed?
A . action 2
B. action 2 action 3
C. action 2 action 4
D. action 3
E. action 4
F. action 5 action 2 action 3
G. action 5 action 2 action 4
H. action 5 action 1 action 2 action 3
I. action 5 action 1 action 2 action4
J. action 8 action 5 action 7 action 2 action 3
K. action 8 action 5 action 7 action 2 action 3 action 4
L. action 8 action 5 action 7 action 2 action 4

Answer: I
