Which of the following statements is correct?

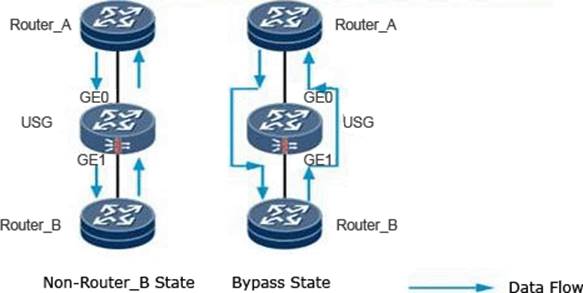

Figure shows the data flow direction of power bypass interface in the Bypass working mode and non-bypass working mode, on the working process of power bypass interface.

Which of the following statements is correct? (Choose 2 Answers)

A. When the interface operates in the non-bypass state, traffic flows from the GE0 interface to the USG through Router_A and flows from the GE1 interface to Router_B after the USG process.

B. When the interface works in the Bypass state, the traffic flows from the GE0 interface to the USG through Router_A. The USG flows from the GE1 interface to Router_B directly without any processing.

C. When the firewall requires security priority, the uplink and downlink services are not interrupted when the interface operates in the Bypass state. So that the device can be maintained in the Bypass state.

D. Power Bypass interface can only work in the two-layer model, with circuit bypass function.

Answer: AB
