Which IP address will be used to source NAT the Internet traffic coming from a workstation with the IP address 10.0.1.10/24?

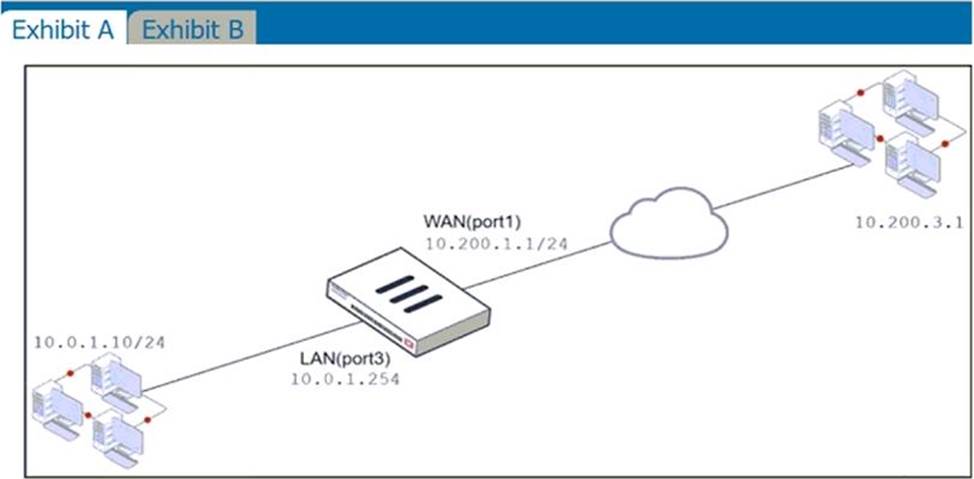

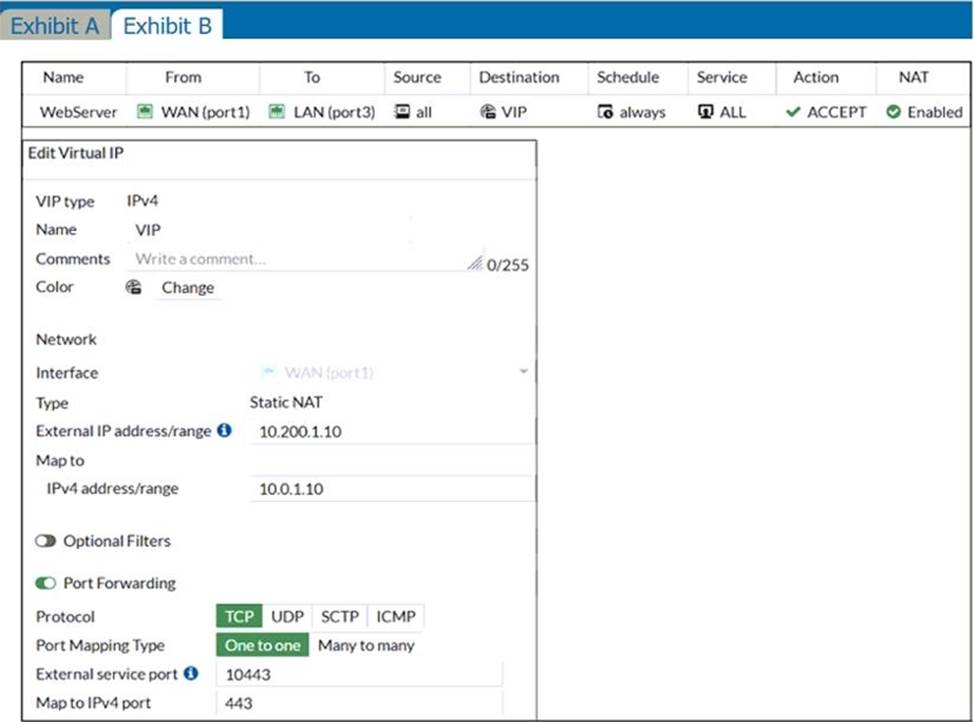

Examine the exhibit, which contains a virtual IP and firewall policy configuration.

The WAN (port1) interface has the IP address 10.200. 1. 1/24. The LAN (port2) interface has the IP address 10.0. 1.254/24.

The first firewall policy has NAT enabled on the outgoing interface address. The second firewall policy is configured with a VIP as the destination address.

Which IP address will be used to source NAT the Internet traffic coming from a workstation with the IP address 10.0.1.10/24?
A . 10.200. 1. 10
B . Any available IP address in the WAN (port1) subnet 10.200. 1.0/24 66 of 108
C . 10.200. 1. 1
D . 10.0. 1.254

Answer: A

Explanation:

https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-firewall-52/Firewall%20Objects/Virtual%20IPs.
