Which router ID is correct for OSFPv3?
A . 0.0.0.0
B . 2001:123:6::1
C . ::172.16.1.1
D . 172.16.1.1
Answer: D
What allows non-Web enabled devices to access the network on a port configured for captive portal?
What allows non-Web enabled devices to access the network on a port configured for captive portal?
A . A MAC address white list can be configured on the switch to allow specific MAC addresses to bypass the captive portal process.
B . LLDP can be used to query the type of device that is attempting to access the network, and predefined device types can be allowed to bypass the captive portal process.
C . Captive portal can be configured to only prompt for credentials when HTTP or HTTPS traffic is requested on a port to allow on-HTTP enabled devices access to the network.
D . Authentication credentials for specific devices can be preconfigured on the switch for automatic authentication.
Answer: A
Referring to the exhibit which two statements are true?
Click the Exhibit.
Referring to the exhibit which two statements are true? (Choose two.)
A . Untagged control packets entering interface ge-0/0/1 are not recognized.
B . Untagged data packets entering interface ge-0/0/2 will be tagged with VLAN ID 20.
C . Untagged control packets entering interface ge-0/0/3 are passed without a VLAN tag.
D . Untagged data packets entering interface ge-0/0/3 will be tagged with VLAN ID 1.
Answer: B,D
What would cause telemetry logging to stop?
A new PoE+VoIP handset was added to an EX Series device. The handset is experiencing connectivity issues. The EX Series device’s committed configuration includes the set PoE interface all telemetry command. You look at the telemetry log in the device to review power consumption and you notice entries have not been occurring for days.
What would cause telemetry logging to stop?
A . Telemetry logging only occurs for one hour by default.
B . Telemetry logging stops when all reserved power for PoE has been consumed.
C . Telemetry logging only works on Enhanced PoE VoIP handsets.
D . Telemetry logging stops when the logging file reaches 128 K
Answer: A
Referring to the exhibit, what must be done to establish this session?
Click the Exhibit.
You are configuring a new BGP session between router1 and router2. The session does not establish.
Referring to the exhibit, what must be done to establish this session?
A . You must define the peer-as number on router2.
B . You must define the autonomous- system number under the [edit routing-options] hierarchy on router1.
C . You must specify type as external on both devices.
D . You must specify the local-address on both devices.
Answer: D
Which type of BGP is used to peer with a different autonomous system?
Which type of BGP is used to peer with a different autonomous system?
A . external
B . classless
C . dynamic
D . static
Answer: A
What is required to accomplish this task?
Click the Exhibit.
Referring to the exhibit, you have EBGP peerings with both ISP1 and ISP2. You are receiving the 172.25.12.0/24, 172.25.13.0/24, 172.25.14.0/24, and 172.25.15.0/24 routes through both neighbors. You must ensure that traffic to these prefixes are load balances through both service providers. You have configured a load-balancing policy and have applied it to the forwarding table, but the prefixes are not being load balanced.
What is required to accomplish this task?
A . The multihop feature should be enabled between both neighbors.
B . The multipath multiple-as feature should be used between both neighbors.
C . The as-override feature should be used between both neighbors.
D . The include-mp-next-hop feature should be used between both neighbors.
Answer: B
Which action will accomplish?
Your campus EX9200 core devices are highly oversubscribed on bandwidth ans reporting massive dropped packets. To immediately address the issue, you decide to implement shaping on all interfaces.
Which action will accomplish?
A . Apply the input-shape-rate 5G parameter to all interfaces under the [edit class-of service] hierarchy.
B . Define a CoS input traffic control profile with the shape-rate 5G parameter and apply it to all interfaces.
C . Define a CoS output traffic control profile with the shape-rate 5G parameter and apply it to all interfaces.
D . Apply the shape-rate 5G parameter to all interfaces under the [edit class-of service] hierarchy.]
Answer: D
What should you do on R1 to accomplish this task?
Click the Exhibit.
Referring to the exhibit, you are receiving multiple routes from ISP3 through two EBGP neighbors. You must ensure that all traffic leaving R1 destined to the networks advertised by ISP3 go through ISP2.
What should you do on R1 to accomplish this task?
A . Create and apply an import policy to set the local preference on routes learned from ISP2 to be lower than those learned from ISP1.
B . Create and apply an import policy to set the route preference on routes learned from ISP2 to be lower than those learned from ISP1.
C . Create and apply an import policy to set the route preference on routes learned from ISP2 to be higher than those learned from ISP1.
D . Create and apply an import policy to set the local preference on routes learned from ISP2 to be higher than those learned from ISP1.
Answer: D
Assuming bandwidth is available in this scenario, which statement is correct?

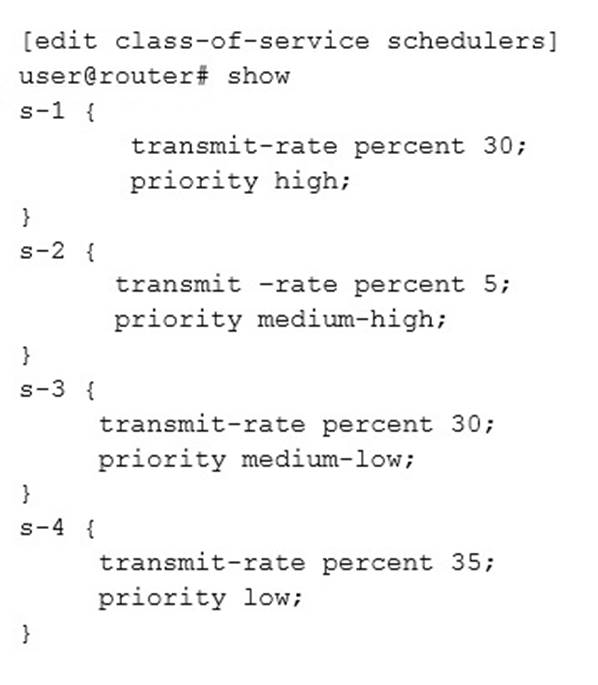

Click the exhibit.
Referring to the exhibit, traffic handled by the s-1 scheduler is out of profile.
Assuming bandwidth is available in this scenario, which statement is correct?
A . Traffic handled by the s-1 scheduler is serviced immediately after traffic being serviced by the s-4 scheduler.
B . Traffic handled by the s-1 scheduler is serviced immediately before traffic being serviced by the s-4 scheduler.
C . Traffic handled by the s-1 scheduler is serviced immediately before traffic being serviced by the s-2 scheduler.
D . Traffic handled by the s-1 scheduler is serviced immediately after traffic being serviced by the s-2 scheduler.
Answer: D
