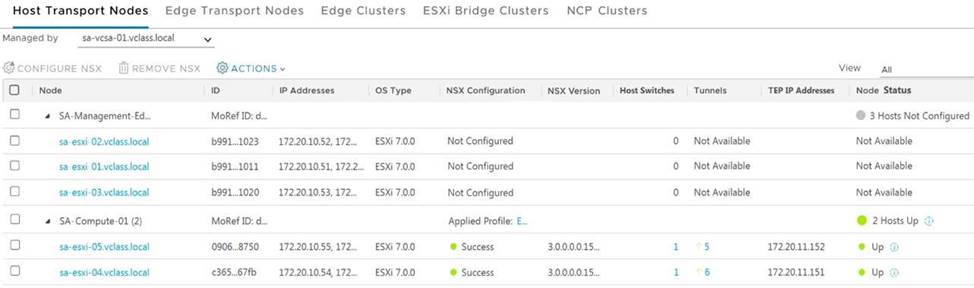

1. Given this exhibit:

Which statement is true about the host transport nodes?

sa-esxi-04.vclass.local is successfully prepared for NSX with a TEP address of 172.20.11.151.

sa-esxi-02.vclass.local is successfully prepared for NSX with a TEP address of 172.20.10.52.

sa-esxi-05.vclass.local is successfully prepared for NSX with a TEP address of 172.20.10.55.

sa-esxi-03.vclass.local had an error while being prepared for NSX with no TEP address assigned.

2. What is the benefit of connecting segments to Tier-1 Gateways?

Enhanced cloud consumption model

Enhanced micro-segmentation model

Enhanced East/West communication

Enhanced North/South communication

3. A customer needs to create a multi-tier network infrastructure.

What does the customer need to do to create this infrastructure?

Connect segments to a Tier-1 gateway, and connect the Tier-1 gateway to the Tier-0 gateway.

Connect segments to the Tier-1 gateway only.

Connect segments to a Tier-0 gateway, and connect the Tier-0 gateway to the Tier-1 gateway.

Connect segments to the Tier-0 gateway only.

4. A customer needs a solution to provide Layer 2 connectivity between vSphere and KVM hypervisors.

Which VMware solution should the customer use?

NSX Service Mesh

NSX Cloud

NSX-T Data Center

NSX Intelligence

5. Which component needs to be available for the ESXi hosts to be able to enable vSphere High Availability?

10Gbps network interfaces

Direct attached disks

Shared data storage

Dual CPU sockets

6. Which protocol allows an administrator to provide overlay networks on top of physical networks used in NSX-T Datacenter?

Geneve Segments

Tier-0 Gateway

VXLAN

Distributed Firewall

7. How does virtual networking enable business to reduce time-to-market?

By performing automatic hardware upgrades

By increasing traffic bandwidth

By removing physical network devices

By providing network services on demand

8. A customer needs to secure its micro-services.

Which feature does NSX Data Center offer to help achieve this requirement?

Micro segmentation enforcement at container level

Integration with third-party vendors

Service Insertion for Containers

Easy Operation of Containers

9. Which plane is responsible for creating and deleting network objects in the NSX-T Data Center Architecture?

Control Plane

Data Plane

Life Cycle Plane

Management Plane

10. Which two statements are true about N-VDS/VDS? (Choose two.)

KVM hosts support both N-VDS and VD

It is a module deployed in all transport nodes that provides L2 functionality.

It is a module deployed in all transport nodes that provides L3 functionality.

ESXi hosts support both N-VDS and VD

Bare-metal servers support both N-VDS and VD
