What does the system status LED look like when an over temperature or major alarm occurs on the Cisco UCS 6120XP Fabric Interconnect?
A . Amber
B . Red
C . Blinking amber
D . Blinking red
Answer: C
What does the system status LED look like when an over temperature or major alarm occurs on the Cisco UCS 6120XP Fabric Interconnect?
A . Amber
B . Red
C . Blinking amber
D . Blinking red
Answer: C
Where do you find the model number of a Cisco MDS 9200 Series chassis?
A . on the top front of the chassis next to the serial number
B . on the bottom front of the chassis next to the Cisco logo
C . on the top front of the chassis next to the Cisco logo
D . on the bottom front of the chassis next to the serial number
Answer: C
Refer to the exhibit.
Where is the best place to see bootflash free space?
A . A – Available Memory
B . B – Total Memory
C . C – Local Storage Information
D . D – High Availability Details
Answer: C
Which important feature on the front end is provided to the clients by multiple servers that access the same storage devices across the SAN?
A . recovery
B . redundancy
C . resiliency
D . security
E . storage
Answer: B
Which type of connection across the network does a SAN allow for multiple servers to access an unlimited amount of storage devices?
A . any-to-many
B . many-to-any
C . any-to-any
D . any-to-one
E . one-to-any
F . one-to-one
Answer: C

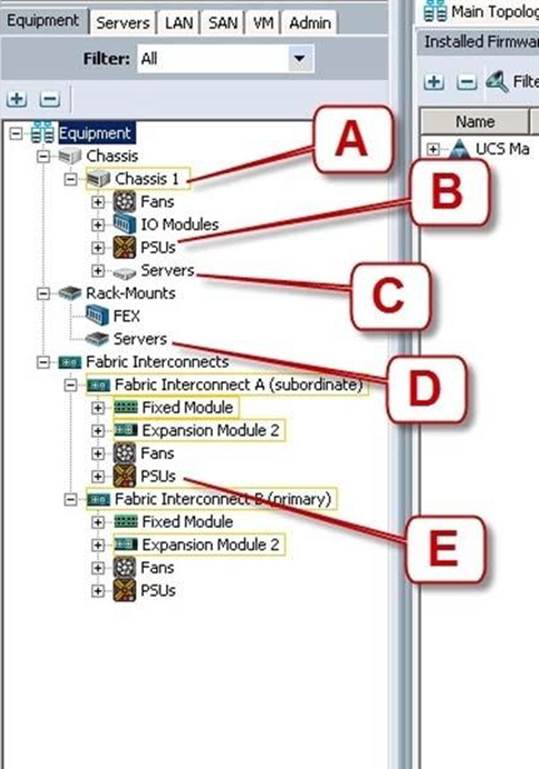

Refer to the exhibit.
Where is the best place to see the power supply status of the blade server enclosure?
A . A – Chassis 1
B . B – Chassis 1 – PSUs
C . C – Chassis1 – Servers
D . D – Rack-Mounts – Servers
E . E – Fabric Interconnects A – PSUs
Answer: B
Which two statements about PCIe are true? (Choose two.)
A . The PCIe link is built around dedicated unidirectional couples of serial, point-to-point connections known as lanes.
B . You can install a PCI Express x8 adapter into an x4 slot.
C . The PCIe standard is a bus-based system in which all the devices share the same bidirectional, 32-bit or 64-bit, parallel signal path.
D . The PCIe 1.0 standard doubles the transfer rate compared to PCIe 2.0.
E . A link that is composed of four lanes is called an x4 link.
Answer: AE
Which method is a TCP/IP-based protocol for establishing and managing connections between IP-based storage devices, hosts, and clients?
A . FCIP
B . iFCP
C . iSCSI
D . FCoE
Answer: C
Which command-line interface mode is best described by this prompt? UCS-switch-A (nxos)#
A . maintenance mode
B . EXEC mode
C . local management mode
D . global configuration mode
E . Cisco IOS mode
Answer: B
Refer to the exhibit.
Where is the best place to see whether the system is ready for a Fabric Interconnect failover?
A . A – Overall Status operable
B . B – L1 Connection
C . C – Part Details
D . D – Access
E . E – High Availability Details
Answer: E
