What should you provide to the Microsoft Support Engineer?

You are troubleshooting an Azure Stack Hub integrated system.

A Microsoft Support Engineer needs to review automatically uploaded logs.

What should you provide to the Microsoft Support Engineer?
A . the Azure AD tenant ID
B. the metering subscription ID
C. the Microsoft Partner Network (MPN) number
D. the Azure Stack Hub Cloud ID
E. the default service provider subscription ID

Answer: D

Explanation:

The Cloud ID is the unique ID for tracking support data uploaded from a specific scale unit. When diagnostic logs are uploaded for support analysis, the Cloud ID is how the logs are associated with that scale unit.

Reference: https://learn.microsoft.com/en-us/azure-stack/operator/azure-stack-find-cloud-id?

Does this meet the goal?

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You plan to install an update to an Azure Stack Hub integrated system.

You need to verify whether the integrated system is healthy, and whether you can apply the update. You must achieve the goal as quickly as possible.

Solution: From the administrator management endpoint, you run Test-AzureStack CGroup "Default".

Does this meet the goal?
A . Yes
B. No

Answer: B

Explanation:

Correct: Solution: From a privileged endpoint (PEP) session, you run Test-AzureStack CGroup "UpdateReadiness".

Use a privileged endpoint (PEP) session and Test-AzureStack with UpdateReadiness.

Note:

Running the validation tool and accessing results

You can use the PEP to run the validation tool. The tool can take a while to run. The length of the time depends on the number of virtual machines in your system. Each test returns a PASS/FAIL status in the PowerShell window.

Here’s an outline of the end-to-end validation testing process:

Which PowerShell module should you install first?

You provision a new certificate to support the planned changes.

You need to validate the certificate.

Which PowerShell module should you install first?
A . Az.Websites
B. AzureRM.TemplateValidator
C. AzureStack
D. Microsoft.AzureStack.ReadinessChecker

Answer: D

Explanation:

Use the Azure Stack Hub Readiness Checker tool to validate that generated public key infrastructure (PKI) certificates which are suitable for pre-deployment. Validate certificates by leaving enough time to test and reissue certificates if necessary.

The Readiness Checker tool performs the following certificate validations:

* Parse PFX

Checks for valid PFX file, correct password, and whether the public information is protected

by the password.

* Expiry Date

Checks for minimum validity of seven days.

* Signature algorithm

Checks that the signature algorithm isn’t SHA1.

* Private Key

Checks that the private key is present and is exported with the local machine attribute.

* Etc.

Note: Perform core services certificate validation

Use these steps to validate the Azure Stack Hub PKI certificates for deployment and secret rotation:

Which three components should you restore?

The priv2 region is redeployed according to the planned changes.

You need to restore App Service.

Which three components should you restore? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.
A . the App Service roles and services
B. the file server share content
C. the infrastructure backup
D. the worker role virtual machine
E. the App Service databases
F. the default domain certificate

Answer: A,B,E

Explanation:

Reference: https://docs.microsoft.com/en-us/azure-stack/operator/app-service-recover?view=azs-2008

Which three components are required to configure an Azure Stack Hub infrastructure backup? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

Which three components are required to configure an Azure Stack Hub infrastructure backup? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.
A . an SMB file share in the trusted network perimeter
B. credentials that have write access to storage
C. an Azure Blob storage account
D. an encryption certificate
E. an SMB file share in Azure

Answer: A,B,D

Explanation:

Reference: https://docs.microsoft.com/en-us/azure-stack/operator/azure-stack-backup-reference?view=azs-2008

Which three actions should you perform in sequence?

DRAG DROP

You have an Azure Stack Hub integrated system linked to an Azure AD tenant named contoso.onmicrosoft.com.

You need to allow users in an Azure AD tenant named adatum.onmicrosoft.com to access Azure Stack Hub resources.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Answer:

Explanation:

Graphical user interface, text, application

Description automatically generated

Register a guest directory

To register a guest directory for multi-tenancy, you need to configure both the home Azure Stack Hub directory and the guest directory.

Configure Azure Stack Hub directory

The first step is to make your Azure Stack Hub system aware of the guest directory. In this example, the directory from Mary’s company, Adatum, is called adatum.onmicrosoft.com.

Does this meet the goal?

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure Stack Hub integrated system that connects to the Internet.

You need to update the Azure Event Hubs service.

Solution: From the Updates blade of the administrator portal, you select the latest update in the infrastructure section.

Does this meet the goal?
A . Yes
B. No

Answer: B

Explanation:

Reference: https://docs.microsoft.com/en-us/azure-stack/operator/resource-provider-apply-updates?view=azs-2008

Which three actions should you perform in sequence?

DRAG DROP

You deploy an Azure Stack Hub integrated system that contains an Azure App Service deployment. The integrated system uses an Azure Active Directory (Azure AD) identity provider.

You need to provide users with the ability to deploy App Service web apps directly from their GitHub repositories.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Answer:

Does this meet the goal?

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You plan to install an update to an Azure Stack Hub integrated system.

You need to verify whether the integrated system is healthy, and whether you can apply the update. You must achieve the goal as quickly as possible.

Solution: From the administrator management endpoint, you run Test-AzureStack CGroup "Default".

Does this meet the goal?
A . Yes
B. No

Answer: B

Explanation:

Correct: Solution: From a privileged endpoint (PEP) session, you run Test-AzureStack CGroup "UpdateReadiness".

Use a privileged endpoint (PEP) session and Test-AzureStack with UpdateReadiness.

Note:

Running the validation tool and accessing results

You can use the PEP to run the validation tool. The tool can take a while to run. The length of the time depends on the number of virtual machines in your system. Each test returns a PASS/FAIL status in the PowerShell window.

Here’s an outline of the end-to-end validation testing process:

What should you do in the Azure Stack Hub administrator portal?

HOTSPOT

You need to configure the Azure Stack Hub infrastructure backups. The solution must meet the Azure Stack Hub requirements.

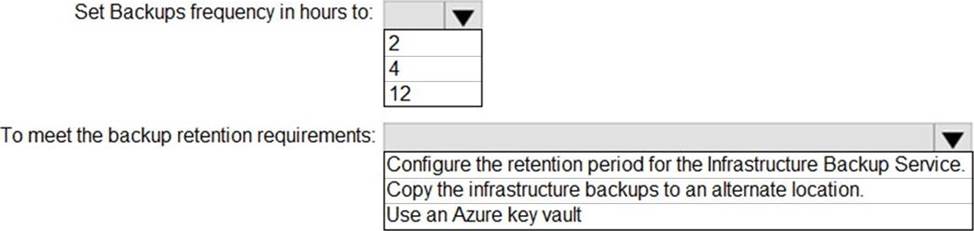

What should you do in the Azure Stack Hub administrator portal? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Answer:

Explanation:

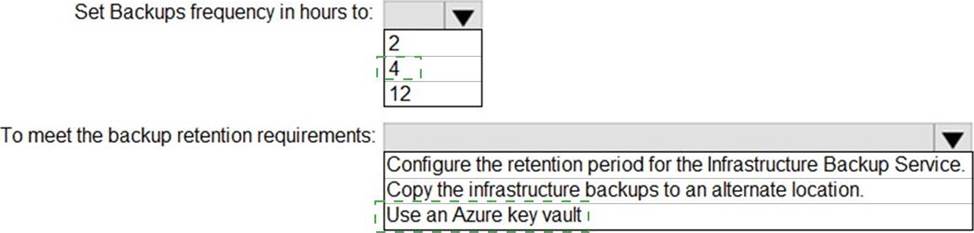

Box 1: 4

The infrastructure of the integrated system must be backed up as frequently as possible.

Enable backup for Azure Stack Hub from the administrator portal

The frequency in hours determines how often backups are created. The default value is 12.

Scheduler supports a maximum of 12 and a minimum of 4.

Box 2: Azure key vault

The integrated system backups must be retained for 28 days.

Online retention policy. This specifies the time period during which daily, weekly, monthly, and yearly backups are retained in the Azure Site Recovery vault that’s associated with the local MABS instance.
