HOTSPOT
You plan to deploy the backup policy shown in the following exhibit.
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic. NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Graphical user interface, text, application
Description automatically generated
HOTSPOT

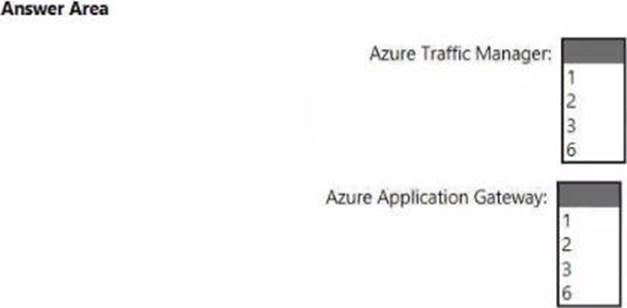

You are evaluating whether to use Azure Traffic Manager and Azure Application Gateway to meet the connection requirements for App1.
What is the minimum numbers of instances required for each service? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Answer:
A company is planning on deploying an application onto Azure. The application will be based on the .Net core programming language. The application would be hosted using Azure Web apps. Below is part of the various requirements for the application
Give the ability to correlate Azure resource usage and the performance data with the actual application configuration and performance data
Give the ability to visualize the relationships between application components
Give the ability to track requests and exceptions to specific lines of code from within the application Give the ability to actually analyse how uses return to an application and see how often they only select a particular drop-down value
Which of the following service would be best suited for fulfilling the requirement of “Give the ability to correlate Azure resource usage and the performance data with the actual application configuration and performance data”
A . Azure Application Insights
B. Azure Service Map
C. Azure Log Analytics
D. Azure Activity Log
Answer: C
HOTSPOT
How should the migrated databases DB1 and DB2 be implemented in Azure?
Answer:
Explanation:
Table
Description automatically generated
Box 1: SQL Managed Instance
Scenario: Once migrated to Azure, DB1 and DB2 must meet the following requirements:
✑ Maintain availability if two availability zones in the local Azure region fail.
✑ Fail over automatically.
✑ Minimize I/O latency.
The auto-failover groups feature allows you to manage the replication and failover of a group of databases on a server or all databases in a managed instance to another region. It is a declarative abstraction on top of the existing active geo-replication feature, designed
to simplify deployment and management of geo-replicated databases at scale. You can initiate a geo-failover manually or you can delegate it to the Azure service based on a user-defined policy. The latter option allows you to automatically recover multiple related databases in a secondary region after a catastrophic failure or other unplanned event that results in full or partial loss of the SQL Database or SQL Managed Instance availability in the primary region.
Box 2: Business critical
SQL Managed Instance is available in two service tiers:
General purpose: Designed for applications with typical performance and I/O latency requirements.
Business critical: Designed for applications with low I/O latency requirements and minimal impact of underlying maintenance operations on the workload.
HOTSPOT

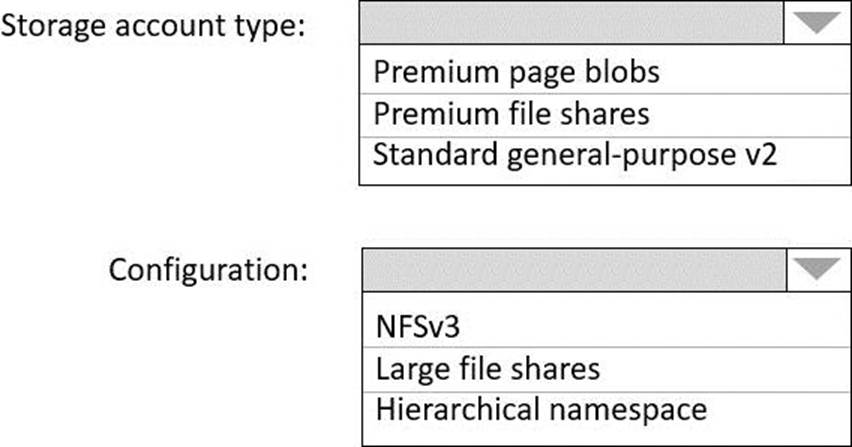

You plan to migrate App1 to Azure.
You need to recommend a storage solution for App1 that meets the security and compliance requirements.
Which type of storage should you recommend, and how should you recommend configuring the storage? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Text, table
Description automatically generated

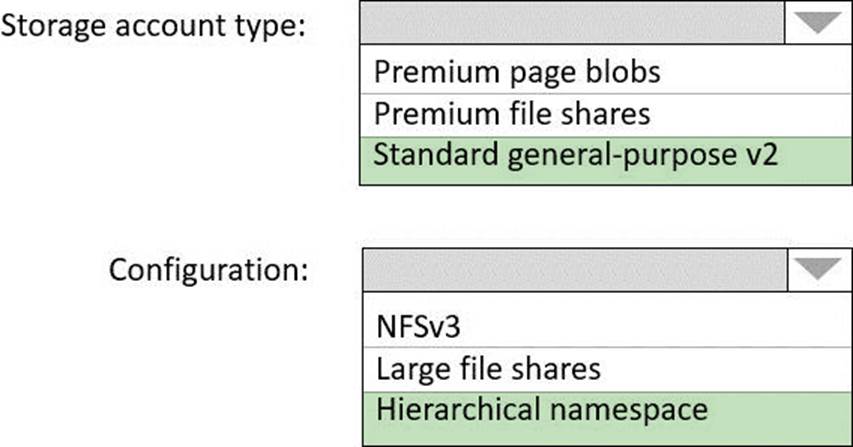

Box 1: Standard general-purpose v2
Standard general-purpose v2 supports Blob Storage.
Azure Storage provides data protection for Blob Storage and Azure Data Lake Storage Gen2.
Scenario:
Litware identifies the following security and compliance requirements:
✑ Once App1 is migrated to Azure, you must ensure that new data can be written to the app, and the modification of new and existing data is prevented for a period of three years.
✑ On-premises users and services must be able to access the Azure Storage account that will host the data in App1.
✑ Access to the public endpoint of the Azure Storage account that will host the App1 data must be prevented.
✑ All Azure SQL databases in the production environment must have Transparent Data Encryption (TDE) enabled.
✑ App1 must NOT share physical hardware with other workloads.
Box 2: NFSv3
Scenario: Plan: Migrate App1 to Azure virtual machines.
Blob storage now supports the Network File System (NFS) 3.0 protocol. This support provides Linux file system compatibility at object storage scale and prices and enables Linux clients to mount a container in Blob storage from an Azure Virtual Machine (VM) or a computer on-premises.
Topic 4, HABInsurance
Case Study
An insurance company, HABInsurance, operates in three states and provides home, auto, and boat insurance. Besides the head office, HABInsurance has three regional offices.
Current environment
General
An insurance company, HABInsurance, operates in three states and provides home, auto, and boat insurance. Besides the head office, HABInsurance has three regional offices. Technology assessment
The company has two Active Directory forests: main.habinsurance.com and region.habinsurance.com. HABInsurance’s primary internal system is Insurance Processing System (IPS). It is an ASP.Net/C# application running on IIS/Windows Servers hosted in a data center. IPS has three tiers: web, business logic API, and a datastore on a back end. The company uses Microsoft SQL Server and MongoDB for the backend. The system has two parts: Customer data and Insurance forms and documents. Customer data is stored in Microsoft SQL Server and Insurance forms and documents ― in MongoDB.
The company also has 10 TB of Human Resources (HR) data stored on NAS at the head office location. Requirements
General
HABInsurance plans to migrate its workloads to Azure. They purchased an Azure subscription. Changes
During a transition period, HABInsurance wants to create a hybrid identity model along with a Microsoft Office 365 deployment. The company intends to sync its AD forests to Azure AD and benefit from Azure AD administrative units functionality.
HABInsurance needs to migrate the current IPSCustomers SQL database to a new fully managed SQL database in Azure that would be budget-oriented, balanced with scalable compute and storage options. The management team expects the Azure database service to scale the database resources dynamically with minimal downtime. The technical team proposes implementing a DTU-based purchasing model for the new database. HABInsurance wants to migrate Insurance forms and documents to Azure database service. HABInsurance plans to move IPS first two tiers to Azure without any modifications. The technology team discusses the possibility of running IPS tiers on a set of virtual machines instances. The number of instances should be adjusted automatically based on the CPU utilization. An SLA of 99.95% must be guaranteed for the compute infrastructure. The company needs to move HR data to Azure File shares.
In their new Azure ecosystem, HABInsurance plans to use internal and third-party applications. The company considers adding user consent for data access to the registered applications
Later, the technology team contemplates adding a customer self-service portal to IPS and deploying a new IPS to multi-region ASK. But the management team is worried about performance and availability of the multi-region AKS deployments during regional outages.
What two parameters would you recommend set up to ensure that the new IPSCustomers database will scale to meet the workload demands?
A . Define the maximum of CPU cores
B. Define the maximum resource limit per group of databases
C. Define the maximum of Database Transaction Units
D. Define the maximum of the allocated storage
E. Define the maximum size for a database
Answer: C,E
Your company develops Azure applications.
You need to recommend a solution for the deployment of Azure subscriptions.
The solution must meet the following requirements:
What should you include in the recommendation?
A . Provision resource groups.
B. Support deployments across all Azure regions.
C. Create custom role-based access control (RBAC) roles.
D. Provide consistent virtual machine and virtual network configurations.
Answer: D
Explanation:
✑ Resource groups: You can scope your deployment to a resource group. You use an Azure Resource Manager template (ARM template) for the deployment.
✑ Regions: If you have a template spec in one region and want to move it to new region, you can export the template spec and redeploy it.
✑ RBAC: Azure role-based access control (Azure RBAC) is the authorization system you use to manage access to Azure resources. To grant access, you assign roles to users, groups, service principals, or managed identities at a particular scope. In addition to using Azure PowerShell or the Azure CLI, you can assign roles using Azure Resource Manager templates. Templates can be helpful if you need to deploy resources consistently and repeatedly
✑ You can setup Virtual machines and virtual network configurations in an Azure Resource Manager template.
Reference:
https://docs.microsoft.com/en-us/azure/governance/blueprints/overview
https://docs.microsoft.com/en-us/azure/azure-resource-manager/management/microsoft-resources-move-regions
https://docs.microsoft.com/en-us/azure/role-based-access-control/role-assignments-template
https://docs.microsoft.com/en-us/azure/virtual-machines/windows/template-description
You are developing a sales application that will contain several Azure cloud services and will handle different components of a transaction. Different cloud services will process customer orders, billing, payment, inventory, and shipping.
You need to recommend a solution to enable the cloud services to asynchronously communicate transaction information by using REST messages.
What should you include in the recommendation?
A . Azure Service Bus
B. Azure Blob storage
C. Azure Notification Hubs
D. Azure Application Gateway
Answer: A
Explanation:
Service Bus is a transactional message broker and ensures transactional integrity for all internal operations against its message stores. All transfers of messages inside of Service Bus, such as moving messages to a dead-letter queue or automatic forwarding of messages between entities, are transactional.
Reference: https://docs.microsoft.com/en-us/azure/service-bus-messaging/service-bus-transactions
DRAG DROP
You need to design an architecture to capture the creation of users and the assignment of roles. The captured data must be stored in Azure Cosmos DB.
Which Azure services should you include in the design? To answer, drag the appropriate services to the correct targets. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Diagram
Description automatically generated
DRAG DROP
You need to design an architecture to capture the creation of users and the assignment of roles. The captured data must be stored in Azure Cosmos DB.
Which Azure services should you include in the design? To answer, drag the appropriate services to the correct targets. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.
Answer:
Explanation:
Diagram
Description automatically generated
