AZ-204 V2

You need to support the requirements for the Shipping Logic App.

What should you use?
A . Azure Active Directory Application Proxy
B. Point-to-Site (P2S) VPN connection
C. Site-to-Site (S2S) VPN connection
D. On-premises Data Gateway

View Answer

Answer: D

Explanation:

Before you can connect to on-premises data sources from Azure Logic Apps, download and install the on-premises data gateway on a local computer. The gateway works as a bridge that provides quick data transfer and encryption between data sources on premises (not in the cloud) and your logic apps.

The gateway supports BizTalk Server 2016. NOTE: Microsoft have now fully incorporated the Azure BizTalk Services capabilities into Logic Apps and Azure App Service Hybrid Connections.

Logic Apps Enterprise Integration pack bring some of the enterprise B2B capabilities like AS2 and X12, EDI standards support

Scenario:

The Shipping Logic app must meet the following requirements:

✑ Support the ocean transport and inland transport workflows by using a Logic App.

✑ Support industry-standard protocol X12 message format for various messages

including vessel content details and arrival notices.

✑ Secure resources to the corporate VNet and use dedicated storage resources with a fixed costing model.

✑ Maintain on-premises connectivity to support legacy applications and final BizTalk migrations.

Reference: https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-gateway-install

DRAG DROP

You develop and deploy an Azure App Service —- app. The web app accesses data in an Azure SQL database.

You must update the web app to store frequently used data m a new Azure Cache for Redis Premium instance.

You need to implement the Azure Cache for Redis features.

Which feature should you implement? To answer, drag the appropriate feature to the correct requirements Each feature may be used once, more than once, or not at all You may need to ———— between panes or scroll to view content. NOTE Each correct selection is worth one point

View Answer

Answer:

Explanation:

Graphical user

interface, text, application

Description automatically generated

HOTSPOT

You need to implement event routing for retail store location data.

Which configuration should you use?

View Answer

Answer:

Explanation:

Graphical user interface, text,

application

Description automatically generated

DRAG DROP

You have a web app named MainApp. You are developing a triggered App Service background task by using the WebJobs SDK. This task automatically invokes a function code whenever any new data is received in a queue.

You need to configure the services.

Which service should you use for each scenario? To answer, drag the appropriate services to the correct scenarios. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Box 1: WebJobs

A WebJob is a simple way to set up a background job, which can process continuously or on a schedule. WebJobs differ from a cloud service as it gives you get less fine-grained control over your processing environment, making it a more true PaaS service.

Box 2: Flow

DRAG DROP

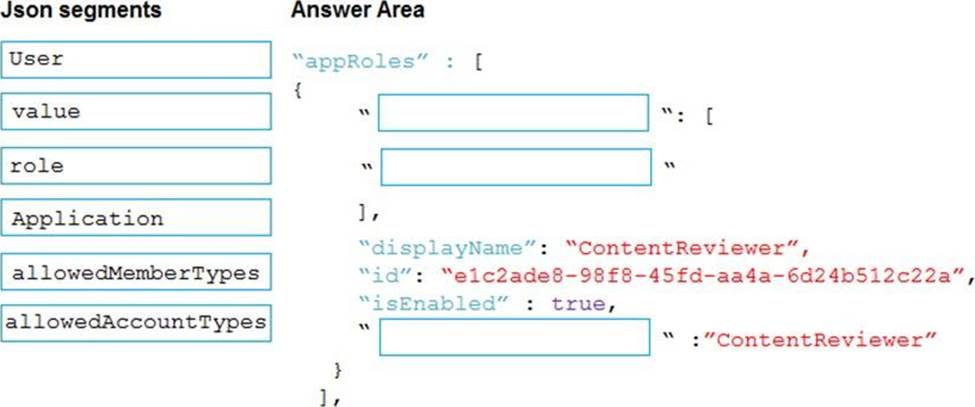

You need to add markup at line AM04 to implement the ContentReview role.

How should you complete the markup? To answer, drag the appropriate json segments to the correct locations. Each json segment may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Box 1: allowedMemberTypes

allowedMemberTypes specifies whether this app role definition can be assigned to users and groups by setting to "User", or to other applications (that are accessing this application in daemon service scenarios) by setting to "Application", or to both.

Note: The following example shows the appRoles that you can assign to users.

"appId": "8763f1c4-f988-489c-a51e-158e9ef97d6a",

"appRoles": [

{

"allowedMemberTypes": [

"User"

],

"displayName": "Writer",

"id": "d1c2ade8-98f8-45fd-aa4a-6d06b947c66f",

"isEnabled": true,

"description": "Writers Have the ability to create tasks.",

"value": "Writer"

}

],

"availableToOtherTenants": false,

Box 2: User

Scenario: In order to review content a user must be part of a ContentReviewer role.

Box 3: value

value specifies the value which will be included in the roles claim in authentication and access tokens.

Reference: https://docs.microsoft.com/en-us/graph/api/resources/approle

QUESTION 1

You need to correct the RequestUserApproval Function app error.

What should you do?
A . Update line RA13 to use the async keyword and return an HttpRequest object value.
B. Configure the Function app to use an App Service hosting plan. Enable the Always On setting of the hosting plan.
C. Update the function to be stateful by using Durable Functions to process the request payload.
D. Update the functionTimeout property of the host.json project file to 15 minutes.

View Answer

Answer: C

Explanation:

Async operation tracking

The HTTP response mentioned previously is designed to help implement long-running HTTP async APIs with Durable Functions. This pattern is sometimes referred to as the polling consumer pattern.

Both the client and server implementations of this pattern are built into the Durable Functions HTTP APIs.

Function app

You perform local testing for the RequestUserApproval function. The following error message displays:

‘Timeout value of 00:10:00 exceeded by function: RequestUserApproval’

The same error message displays when you test the function in an Azure development environment when you run the following Kusto query:

FunctionAppLogs

| where FunctionName = = "RequestUserApproval"

References: https://docs.microsoft.com/en-us/azure/azure-functions/durable/durable-functions-http-

features

HOTSPOT

You need to configure the integration for Azure Service Bus and Azure Event Grid.

How should you complete the CLI statement? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Box 1: eventgrid

To create event subscription use: az eventgrid event-subscription create

Box 2: event-subscription

Box 3: servicebusqueue

Scenario: Azure Service Bus and Azure Event Grid

Azure Event Grid must use Azure Service Bus for queue-based load leveling. Events in Azure Event Grid must be routed directly to Service Bus queues for use in buffering.

Events from Azure Service Bus and other Azure services must continue to be routed to Azure Event Grid for processing.

DRAG DROP

You are authoring a set of nested Azure Resource Manager templates to deploy multiple Azure resources.

The templates must be tested before deployment and must follow recommended practices.

You need to validate and test the templates before deployment.

Which tools should you use? To answer, drag the appropriate tools to the correct requirements. Each tool may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

View Answer

Answer:

Explanation:

Graphical user

interface, text, application

Description automatically generated with medium confidence

https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/test-toolkit

https://docs.microsoft.com/en-us/azure/azure-resource-manager/templates/deploy-what-if?tabs=azure-powershell

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You are developing an Azure Service application that processes queue data when it receives a message from a mobile application. Messages may not be sent to the service consistently.

You have the following requirements:

✑ Queue size must not grow larger than 80 gigabytes (GB).

✑ Use first-in-first-out (FIFO) ordering of messages.

✑ Minimize Azure costs.

You need to implement the messaging solution.

Solution: Use the .Net API to add a message to an Azure Storage Queue from the mobile application. Create an Azure VM that is triggered from Azure Storage Queue events.

Does the solution meet the goal?
A . Yes
B. No

View Answer

Answer: B

Explanation:

Don’t use a VM, instead create an Azure Function App that uses an Azure Service Bus Queue trigger.

Reference: https://docs.microsoft.com/en-us/azure/azure-functions/functions-create-storage-queue-triggered-function

You need to configure the ContentUploadService deployment.

Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.
A . Add the following markup to line CS23:
types: Private
B. Add the following markup to line CS24:
osType: Windows
C. Add the following markup to line CS24:
osType: Linux
D. Add the following markup to line CS23:
types: Public

View Answer

Answer: A

Explanation:

Scenario: All Internal services must only be accessible from Internal Virtual Networks (VNets)

There are three Network Location types C Private, Public and Domain

Reference: https://devblogs.microsoft.com/powershell/setting-network-location-to-private/
