Cisco 350-501 Implementing and Operating Cisco Service Provider Network Core Technologies Online Training
Cisco 350-501 Online Training
The questions for 350-501 were last updated at Sep 15,2025.
- Exam Code: 350-501
- Exam Name: Implementing and Operating Cisco Service Provider Network Core Technologies
- Certification Provider: Cisco
- Latest update: Sep 15,2025

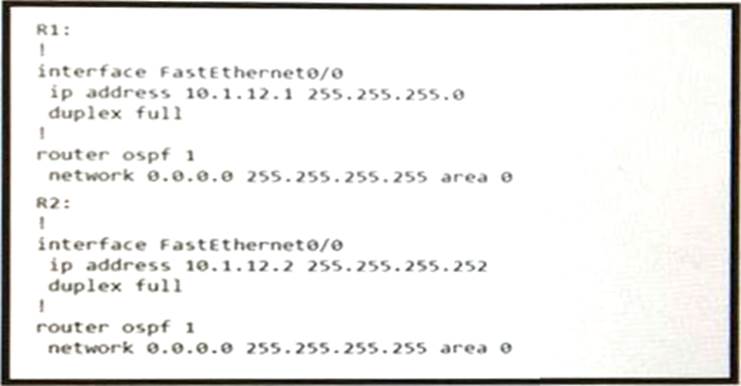

Refer to the exhibit:
R1 and R2 are directly connected with Fast Ethernet interfaces and have the above configuration applied OSPF adjacency is not formed. When the debug ip ospf hello command is issued on R1. these log messages are seen.
Which command can be configured on routers R1 and R2 on fO/O interfaces to form OSPF adjacency?
- A . ip ospf network non-broadcast
- B . ip ospf network point-to- multipoint non-broadcast
- C . ip ospf network point-to-point
- D . ip ospf network broadcast

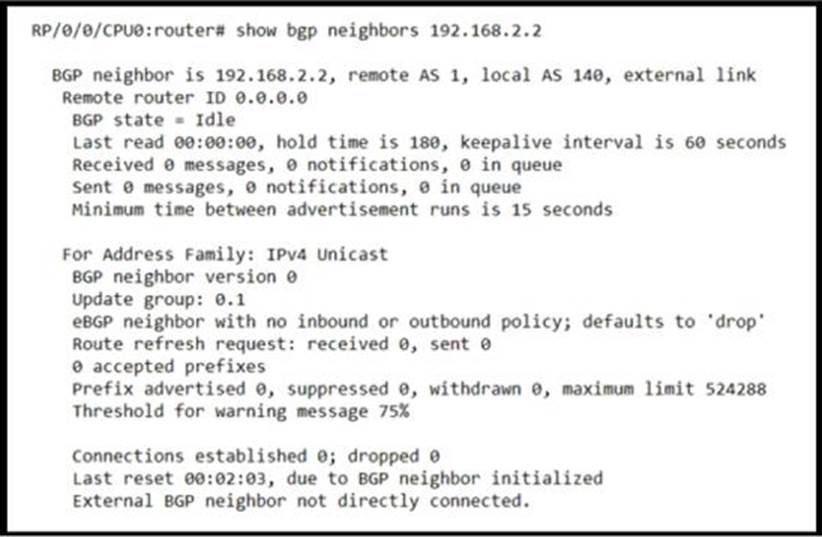

Refer to the exhibit:
Based on the show/ command output, which result m true after BGP session is established?
- A . The IOS XR router advertises all routes to the neighbor 192.168.2.2, but it does not accept any routes from 192.168.2.2
- B . The IOS XR router advertises and accepts all routes to and from eBGP neighbor 192.168.2.2
- C . No routes are accepted from the neighbor 192.168.2.2, nor are any routes advertised to it
- D . The IOS XR router does not advertise any routes to the neighbor 192.168.2.2,but it accepts all routes from 192.168.2.2.
Refer to the exhibit:
Which statement describes this configuration?
- A . Router 1 has its running configuration locked so changes can be made only when the administrator issues a kill session
- B . Router 1 can be remotely managed by the CLI using Telnet
- C . Router 1 has a new data store to collect SNMP information, but configuration must still be done at the CLI only
- D . Router 1 has a temporary data store where a copy of the running configuration can be manipulated and verified before committing the configuration

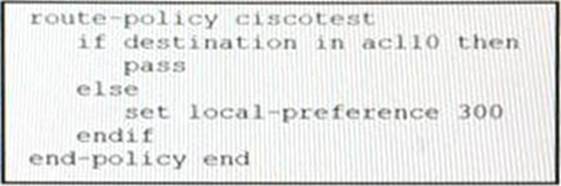

Refer to the exhibit:
A network engineer is implementing a BGP routing policy.
Which effect of this configuration is true?
- A . All traffic that matches acl10 is allowed without any change to its local-preference
- B . All traffic that matches acl10 is dropped without any change to its local-preference
- C . If traffic matches acl10, it is allowed and its local-preference is set to 300
- D . All traffic is assigned a local-preference of 30O regardless of its destination
Which component is similar to an EVPN instance?
- A . MPLS label
- B . IGP router ID
- C . VRF
- D . router distinguisher

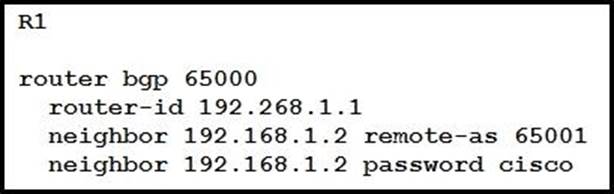

Refer to the exhibit:
Router R1 and its peer R2 reside on the same subnet in the network, If does it make connections to R27
- A . R1 establishes UDP connections that are authenticated with an MD5 password
- B . R1 establishes TCP connections that are authenticated with a clear-text password
- C . R1 establishes UDP connections that are authenticated with a clear-text password
- D . R1 establishes TCP connections that are authenticated with an MD5 password
Which MPLS design attribute can you use to provide Internet access to a major customer through a separate dedicated VPN?
- A . The customer that needs the Internet access service is assigned to the same RTs as the Internet gateway
- B . The Internet gateway inserts the full Internet BGP routing table into the Internet access VPN
- C . The Internet gateway router is connected as a PE router to the MPLS backbone.
- D . The CE router supports VRF-Ute and the full BGP routing table.
Which two tasks must you perform when you implement LDP NSF on your network? (Choose two.)
- A . Enable NSF for EIGRP
- B . Enable NSF for the link-state routing protocol that is in use on the network.
- C . Disable Cisco Express Forwarding
- D . Implement direct connections for LDP peers
- E . Enable NSF for BGP

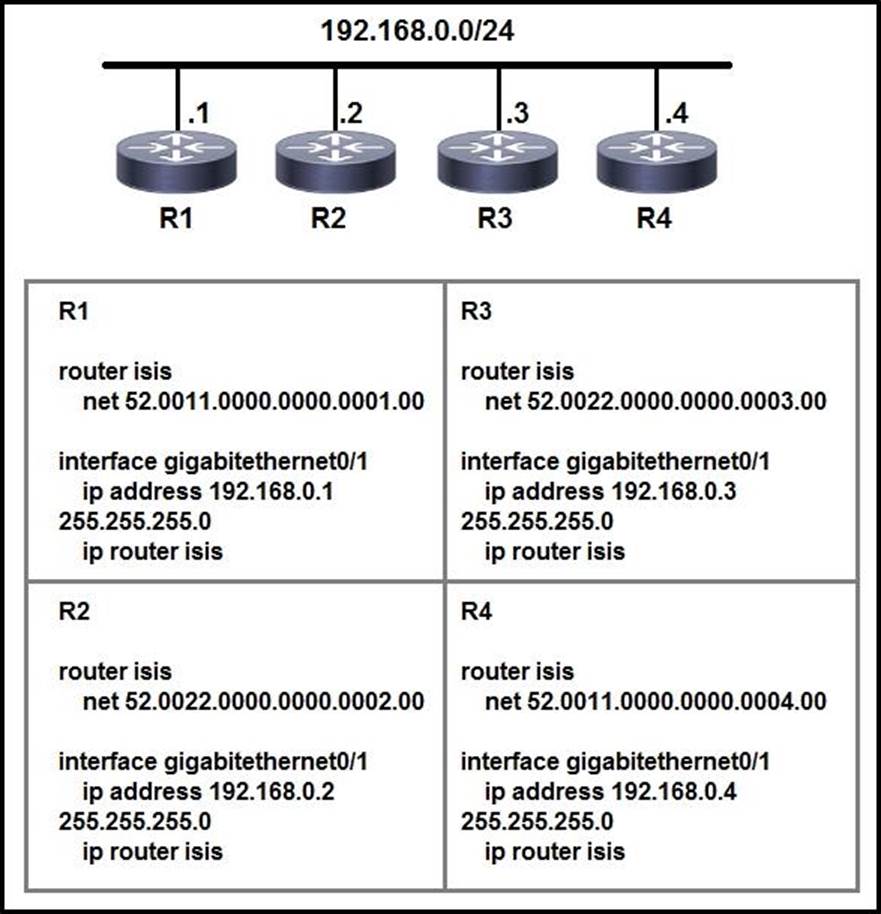

Refer to the exhibit:
Which two statements about the ISIS topology are true? (Choose two.)
- A . All four routers are operating as Level 1 routers only.
- B . All four routers are operating as Level 2 routers only.
- C . All four routers are operating as Level 1-2 routers.
- D . R1 and R2 are Level 2 neighbors.
- E . R1 and R4 are Level 2 neighbors
Refer to the exhibit:
A network engineer is implementing QoS services.
Which two statements about the QoS-group keyword on Cisco IOS XR 3re true? (Choose two )
- A . The QoS group numbering corresponds to priority level
- B . QoS group marking occurs on the ingress
- C . It marks packets for end to end QoS pokey enforcement across the network
- D . QoS group can be used in fabric QoS policy as a match criteria
- E . It cannot be used with priority traffic class
