Cisco 300-620 Implementing Cisco Application Centric Infrastructure (DCACI) Online Training
Cisco 300-620 Online Training
The questions for 300-620 were last updated at Sep 14,2025.
- Exam Code: 300-620
- Exam Name: Implementing Cisco Application Centric Infrastructure (DCACI)
- Certification Provider: Cisco
- Latest update: Sep 14,2025

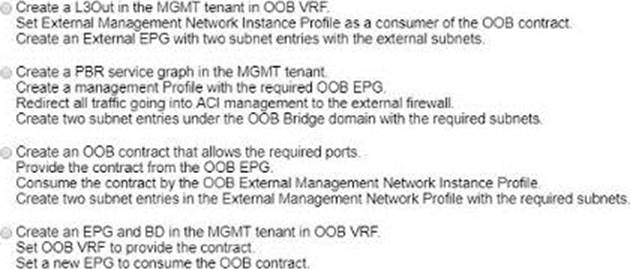

A network engineer must allow secure access to the Cisco ACl out-of-band (OOB) management only from external subnets 10 0 0024 and 192.168 20 G’25.
Which configuration set accomplishes this goal?
- A . Option A
- B . Option B
- C . Option C
- D . Option D

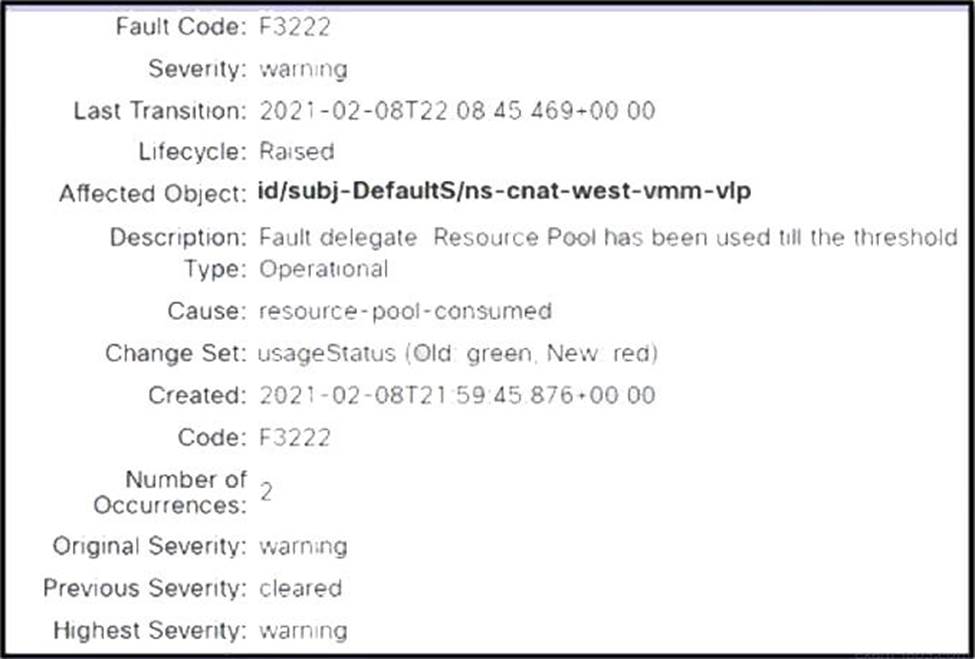

Refer to the exhibit.
A Cisco APIC raises an error when the EPG must accept endpoints from a VMM domain created.
Which action clears the fault?
- A . Expand the VLAN pool for the VMM domain.
- B . Create a bridge domain for the VMM domain.
- C . Associate the EPG with the VMM domain.
- D . Associate the VLAN pool with the VMM domain.

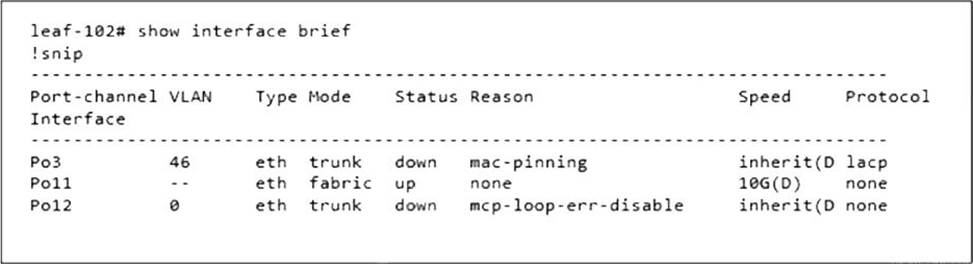

Refer to the exhibit.
Which two configuration steps are completed before this output is generated? (Choose two.)
- A . MCP policy for the interface policy group for Port-channel 12 is enabled.
- B . MCP Instance Policy default in the global access policies is enabled.
- C . Error Disabled Recovery Policy for Loop Indication by MCP is set to True.
- D . BPDU Guard is enabled for the interface policy group for Port-channel 12.
- E . Spanning Tree Policy Region STP_4CAF232E48FF20 is added to the spanning-tree policy of the switch.

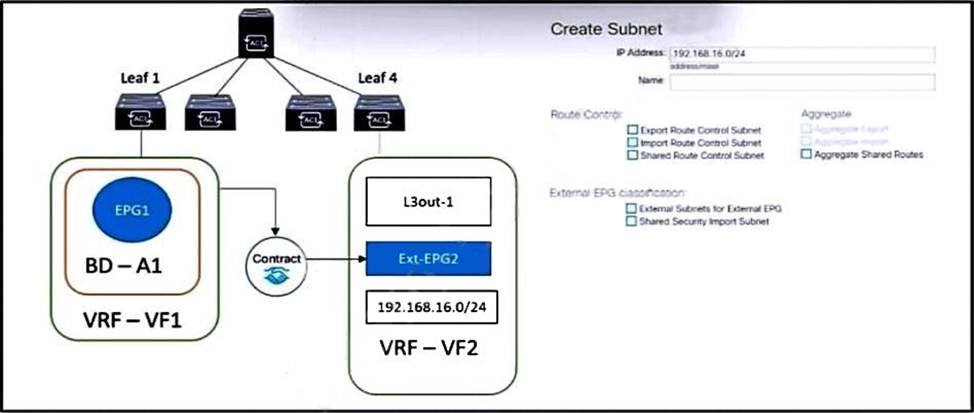

Refer to the exhibit.
The external subnet and internal EPG1 must communicate with each other, and the L3Out traffic must leak into the VRF named "VF1".
Which configuration set accomplishes these goals?
- A . Export Route Control Subnet
Import Route Control Subnet
Aggregate Shared Routes - B . External Subnets for External EPG
Shared Route Control Subnet
Shared Security Import Subnet - C . External Subnets for External EPG
Import Route Control Subnet
Shared Route Control Subnet - D . Export Route Control Subnet
Shared Security Import Subnet
Aggregate Shared Routes

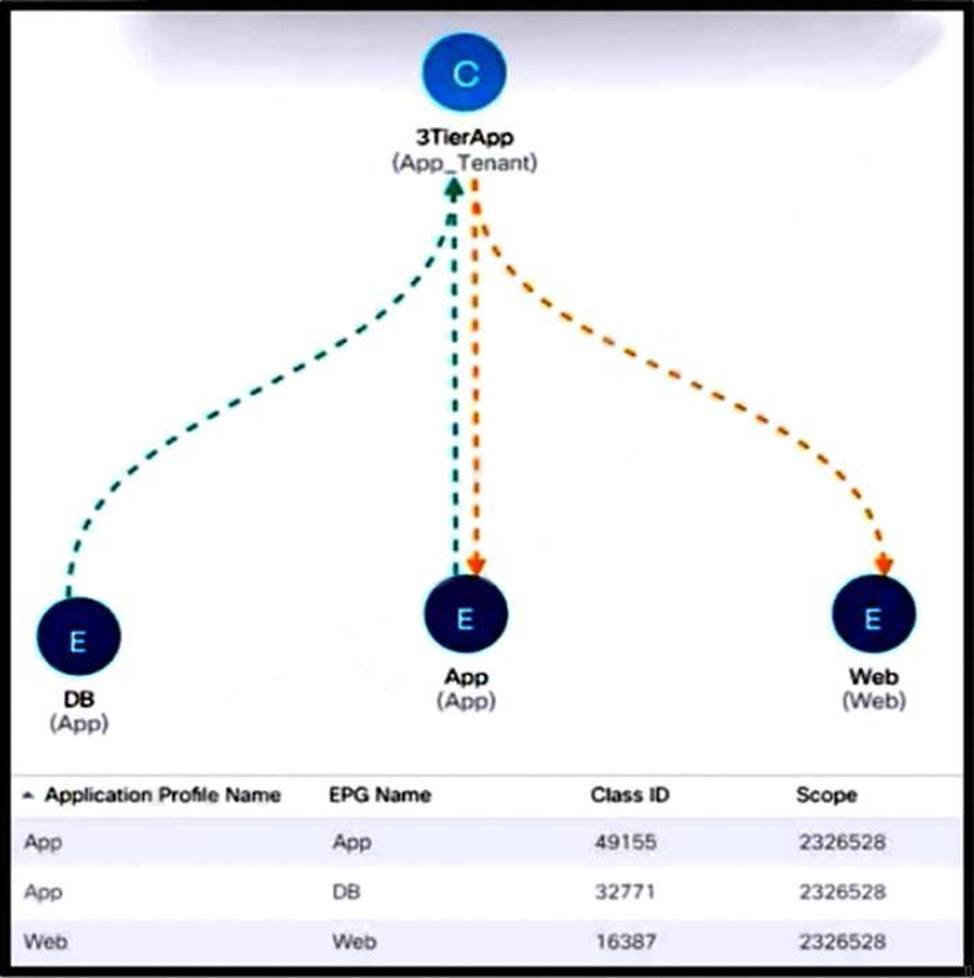

Refer to the exhibit.
New e-commerce software is deployed on Cisco ACI fabric. The environment must meet these requirements:
The overall number of contracts must be reduced by reusing the existing contracts within a VRF when possible.
The e-commerce software must communicate only with software EPGs that are part of the same ANP.
The e-commerce software must be prevented from communicating with applications in different ANPs.
Which scope must be selected to meet these requirements?
- A . Application Profile
- B . Endpoint Group
- C . Tenant
- D . Global
A customer must upgrade the Cisco ACI fabric to use a feature from the new code release. However, there is no direct path from the current release to the desired one. Based on the Cisco APIC Upgrade/Downgrade Support Matrix, the administrator must go through one intermediate release.
Which set of steps must be taken to upgrade the fabric to the new release?
- A . Upgrade the APICs to an interim release.
Upgrade the switches to an interim release.
Upgrade the APICs to the targeted release.
Upgrade the leaf and spine switches to the targeted release. - B . Upgrade the APICs to an interim release and then switches to an interim release.
When all switches are operational, upgrade leaf switches to the targeted release.
Upgrade the spine switches to the targeted release.
Upgrade the APICs to the targeted release. - C . Upgrade the APICs to an interim release.
Upgrade the leaf switches directly to the targeted release.
Upgrade the spine switches directly to the targeted release.
Upgrade the APICs to the targeted release. - D . Upgrade the APICs directly to the targeted release.
Upgrade the switches to an interim release.
When all switches are operational, upgrade the leaf switches to the targeted release.
Upgrade the spine switches to the targeted release.
What is a requirement for Cisco ACI IPN to manage multidestination traffic?
- A . pervasive gateway
- B . unicast routing
- C . anycast gateway
- D . multicast routing
What do Pods use to allow Pod-to-Pod communication in a Cisco ACI Multi-Pod environment?
- A . over Layer 3 directly connected back-to-back spines
- B . over Layer 3 Out connectivity via border leafs
- C . over Layer 3 IPN connectivity via spines
- D . over Layer 3 IPN connectivity via border leafs

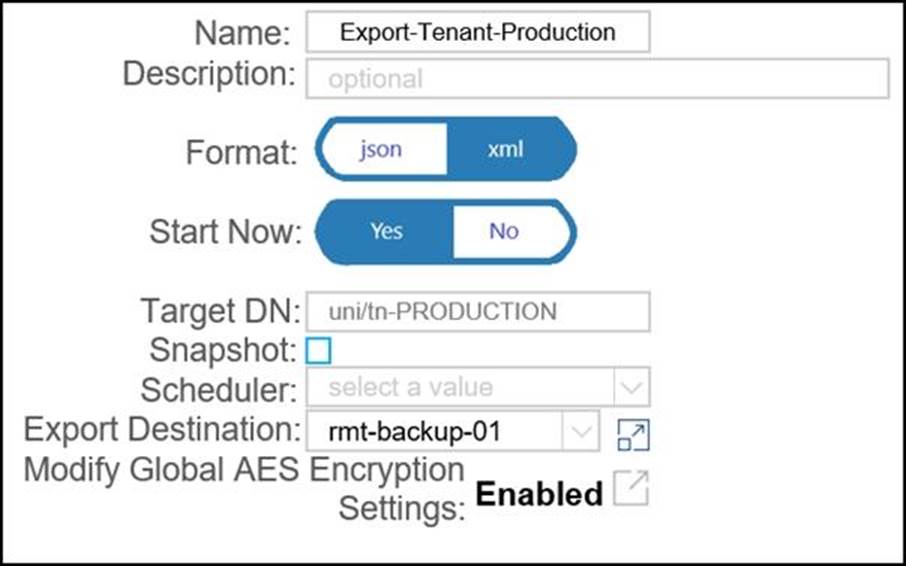

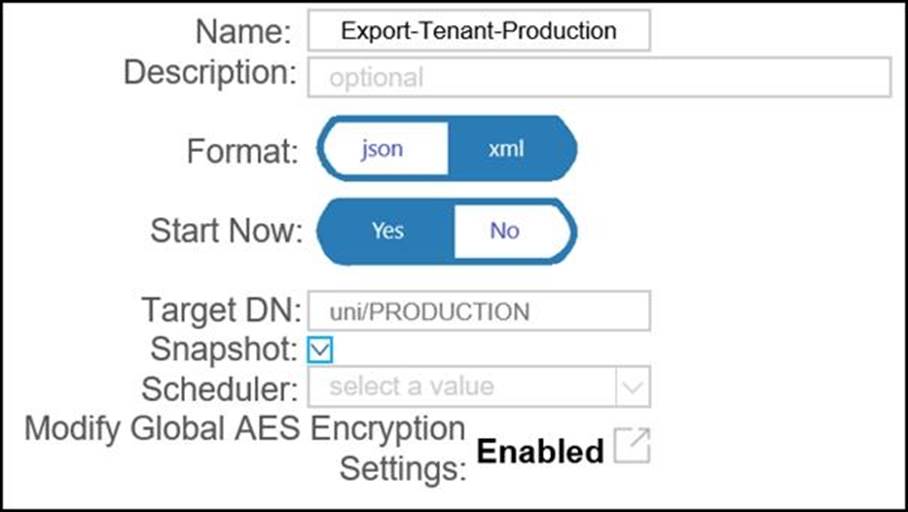

A network engineer must backup the PRODUCTION tenant. The configuration backup should be stored on the APIC using a markup language and contain all secure information.
Which export policy must be used to meet these requirement?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option D
- D . Option D

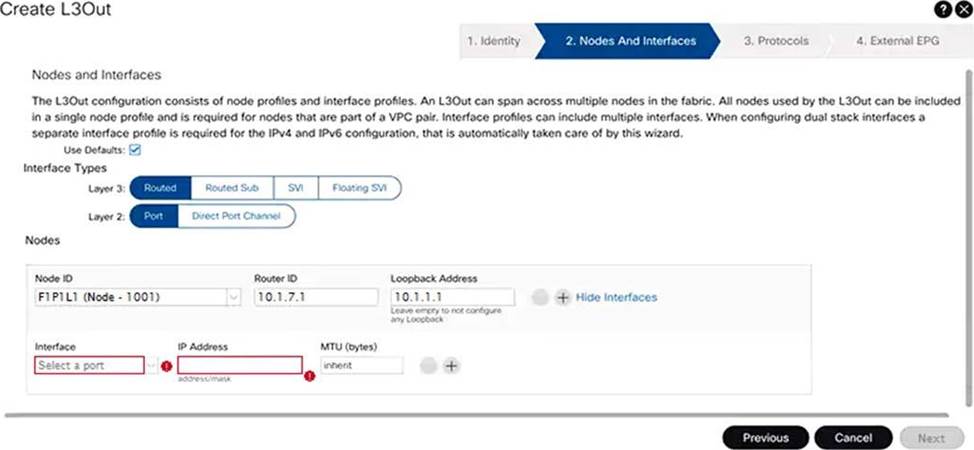

Refer to the exhibit.
An engineer must configure an L3Out peering with the backbone network. The L3Out must forward unicast and multicast traffic over the link.
Which two methods should be used to configure L3Out to meet these requirements? (Choose two.)
- A . Layer 3 routed port
- B . VPC with SVI
- C . port channel with SVI
- D . Layer 3 routed subinterface
- E . Layer 3 floating SVI
