Cisco 300-615 Troubleshooting Cisco Data Center Infrastructure (DCIT) Online Training
Cisco 300-615 Online Training
The questions for 300-615 were last updated at Sep 08,2025.
- Exam Code: 300-615
- Exam Name: Troubleshooting Cisco Data Center Infrastructure (DCIT)
- Certification Provider: Cisco
- Latest update: Sep 08,2025
An attempt to use a global vNIC redundancy template pair results in a service profile that fails to apply.
Which action resolves the issues?
- A . Create the peer names before creating the templates.
- B . Assign the secondary template first, and then set the peer name.
- C . Assign both templates simultaneously.
- D . Assign the primary template first, and then set the peer name.

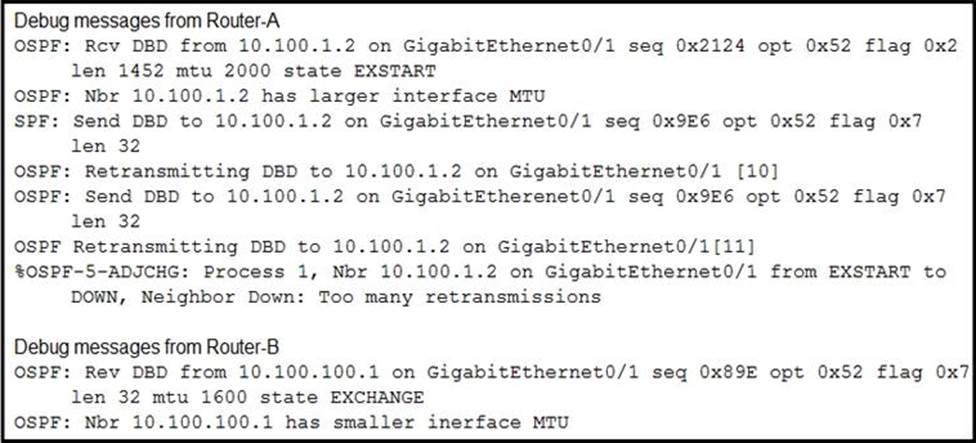

Refer to the exhibit.
An OSPF adjacency between Router-A and Router-B cannot reach the FULL state.
Which action resolves the issue?
- A . Adjust the MTU on Router-A to 1600.
- B . Disable the check of the MTU value.
- C . Set the OSPF media type to point-to-point.
- D . Adjust the MTU on Router-B to 1604.
An engineer configures FCoE between a set of ESXi hosts and a Cisco Nexus 5000 Series Switch. The Converged Network Adapter of the host fails to receive the response from the Cisco Nexus device. Also, the VFC interface is in a down state and the FIP adapter fails to receive 802.1q tagged frames. The host interface is configured for VLAN trunking.
Which action resolves the issue?
- A . Activate the reception of Xoff pause frames from the server
- B . Configure the UF link as a spanning-tree edge port
- C . Enable the active STP port state on the bound Ethernet interface
- D . Set the bound Ethernet trunk interface to non-FCoE native VLAN
Refer to the Exhibit.
An Engineer cannot log in to the Cisco IMC page of the Cisco UCS C220 server.
Which action resolve the issue?
- A . Se the FQDN of the
orporate certificate.
A network engineer must connect a Cisco UCS Fabric Interconnect cluster to the Cisco ACI. VMware ESXi hypervisors have been installed on Cisco UCS blades and a VMware VMM domain has been configured. However, virtual machines fail to reach their default gateway in the Cisco ACI Fabric. The engineer investigates the issue and notices that the VMware Distributed Switch (VDS) teaming policy is set to "Route based on IP hash".
Which action resolves the issue?
- A . Configure the vSwitch Policy on the VMM domain.
- B . Disable the On-demand EPG resolution immediacy setting in ACI.
- C . Disable the VMware Network I/O Control on the VDS.
- D . Configure the vSwitch Policy on a VDS.
Refer to the exhibit.
A network engineer creates an EEM script to trigger an SNMP notification when a user enters configuration mode, but the trap is not received when the condition is met.
Which action resolves the issue?
- A . Append action 2.0 event-default to the script
- B . Append action 2.0 cli “conf t” to the script
- C . Modify snmp-trap strdata “Configuration changed” to syslog msg Configuration changed
- D . Modify cli match “conf t” to “snmp match “conf t”
Refer to the exhibit.
One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address on SWITCH-VTEP-2 and then dropped.
Which action resolves the issue?
- A . Configure a distributed anycast gateway on both peers
- B . Configure ip arp synchronize under the VPC domain on both peers
- C . Configure peer-gateway under the VPC domain on both peers
- D . Configure a different secondary IP address for one of the vPC peers
Refer to the exhibit.
The integration between Cisco UCS Manager and Cisco UCS Central failed.
Which action resolves the issue?
- A . Implement the consistent NTP source between the appliances
- B . Implement the connectivity between the appliances through a firewall
- C . Configure the certificate between the appliances
- D . Configure the shared secret key between the appliances
An upgrade of protected RPMs from the Bash shell did not take effect.
Which action is required for the changes to take effect?
- A . Restart the Bash shell.
- B . Reload the switch.
- C . Upgrade the RPMs from the Guest shell.
- D . Disable and reenable the Bash feature.

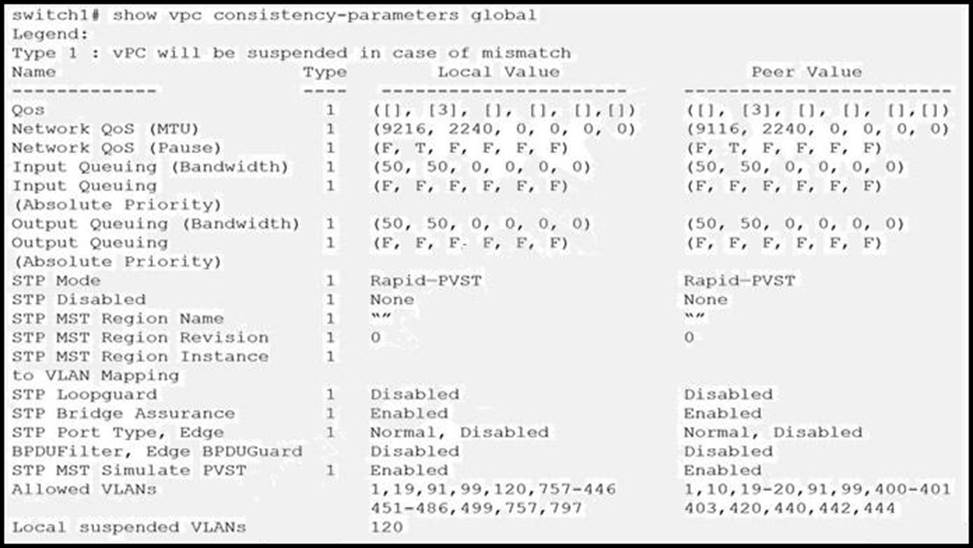

Refer to the exhibit.
The vPC neighborship between two switches is in suspended state.
Which configuration change resolves the issue and brings up the vPC neighborship?
- A . Change STP Port Type to Network on the peer switch
- B . Enable Bridge Assurance on the local switches
- C . Configure QoS MTU value of 9216 on the peer switch
- D . Add VLAN 400-401 to the configuration on the local switch
