Cisco 300-410 Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) Online Training
Cisco 300-410 Online Training
The questions for 300-410 were last updated at Oct 24,2025.
- Exam Code: 300-410
- Exam Name: Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)
- Certification Provider: Cisco
- Latest update: Oct 24,2025

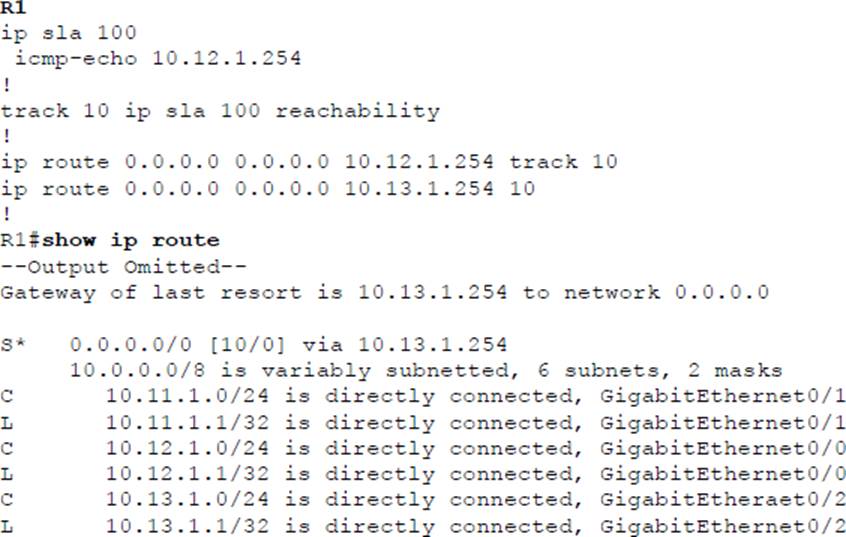

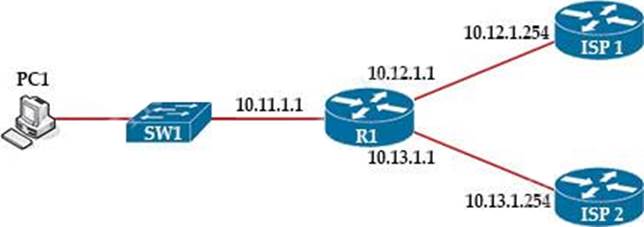

Refer to the exhibit.
An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available.
How is this issue resolved?
- A . Use the icmp-echo command to track both default routes
- B . Use the same AD for both default routes
- C . Start IP SLA by matching numbers for track and ip sla commands
- D . Start IP SLA by defining frequency and scheduling it

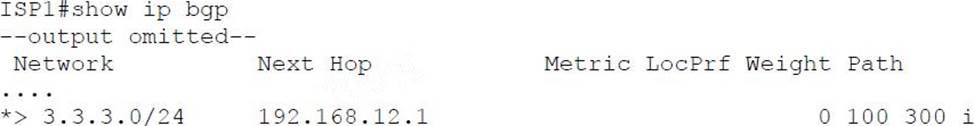

After some changes in the routing policy, it is noticed that the router in AS 45123 is being used as a transit AS router for several service provides.
Which configuration ensures that the branch router in AS 45123 advertises only the local networks to all SP neighbors?
A)
B)
C)
D)
- A . Option A
- B . Option B
- C . Option C
- D . Option D

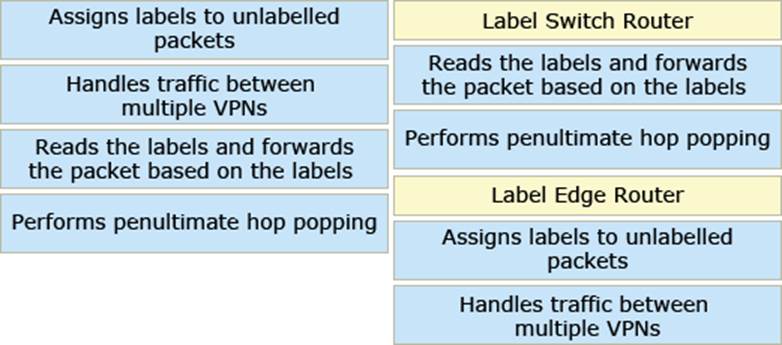

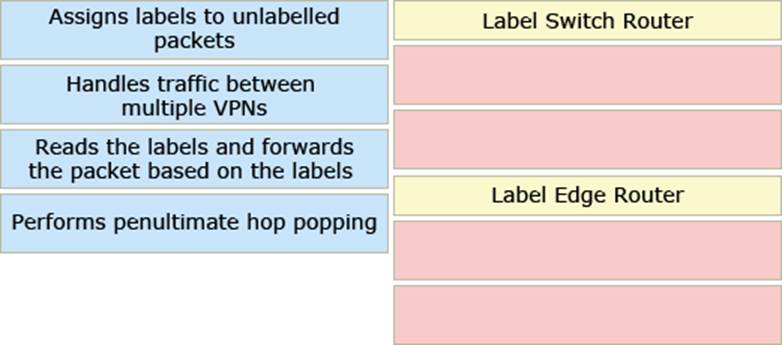

DRAG DROP
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
DRAG DROP
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
DRAG DROP
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
DRAG DROP
Drag and drop the operations from the left onto the locations where the operations are performed on the right.
DRAG DROP
Drag and drop the operations from the left onto the locations where the operations are performed on the right.

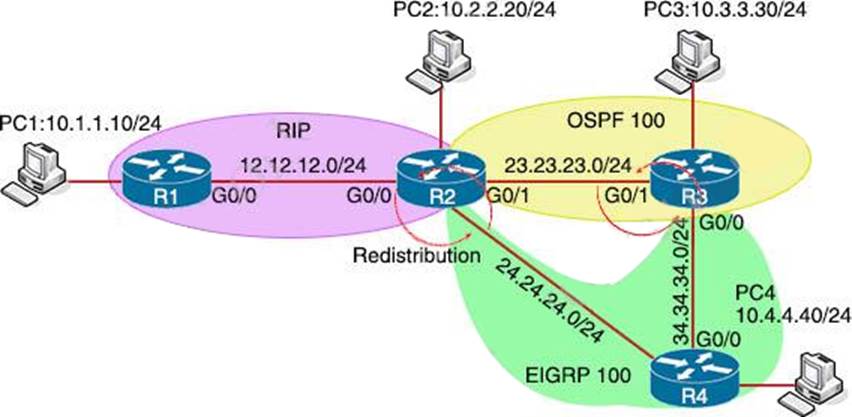

Refer to the exhibit.
Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1.
What are the two solutions to fix the problem? (Choose two.)
- A . Filter RIP routes back into RIP when redistributing into RIP in R2
- B . Filter OSPF routes into RIP FROM EIGRP when redistributing into RIP in R2.
- C . Filter all routes except RIP routes when redistributing into EIGRP in R2.
- D . Filter RIP AND OSPF routes back into OSPF from EIGRP when redistributing into OSPF in R2
- E . Filter all routes except EIGRP routes when redistributing into OSPF in R3.
Refer to the exhibit.
A company is evaluating multiple network management system tools. Trending graphs generated by SNMP data are returned by the NMS and appear to have multiple gaps. While troubleshooting the issue, an engineer noticed the relevant output.
What solves the gaps in the graphs?
- A . Remove the exceed-rate command in the class map.
- B . Remove the class map NMS from being part of control plane policing.
- C . Configure the CIR rate to a lower value that accommodates all the NMS tools
- D . Separate the NMS class map in multiple class maps based on the specific protocols with appropriate CoPP actions
What is a role of route distinguishers in an MPLS network?
- A . Route distinguishers define which prefixes are imported and exported on the edge router
- B . Route distinguishers allow multiple instances of a routing table to coexist within the edge router.
- C . Route distinguishers are used for label bindings.
- D . Route distinguishers make a unique VPNv4 address across the MPLS network
