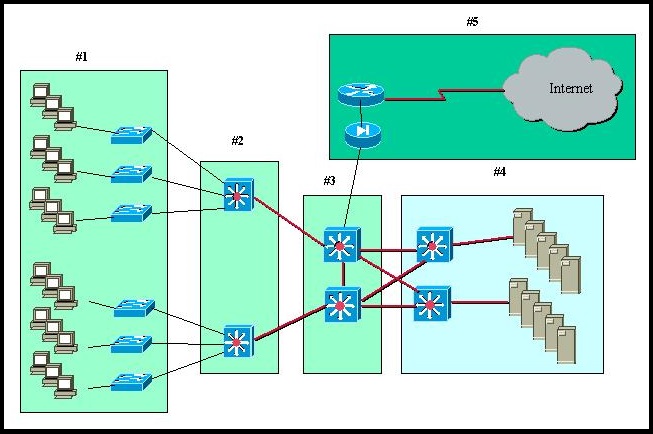

A standard Layer 2 campus network design is pictured. Which numbered box represents the core layer?

Refer to the exhibit.

A standard Layer 2 campus network design is pictured. Which numbered box represents the core layer?
A . #1
B . #2
C . #3
D . #4
E . #5

View Answer

Answer: C
