1. Refer to the exhibit.

What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?

Enable proxy AR

Enable IP routing.

Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.

Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.

2. How many operating system image files can a network administrator load on an ArubaOS switch?

two

three

four

unlimited

3. Refer to the exhibit.

Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2.

How does this affect the MSTP topology?

Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_C and Switch_

Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_D

All connectivity is lost, both uplinks are blocked on Switch_

A Layer 2 loop exists and will cause sporadic connectivity issues.

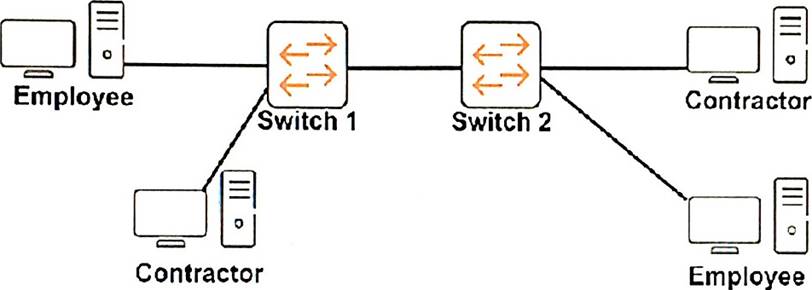

4. Refer to the exhibit.

The network administrator wants to place contractor clients and employee clients in different broadcast domains.

How should the administrator achieve this goal?

Add a router in between Switch 1 and Switch 2. Configure a different subnet on each router interface.

Create two MSTP instances on each switch. Assign ports connected to contractor clients to one instance and ports connected to employee clients to the other instance.

Assign the switch ports connected to contractor clients to one VLAN and ports connected to employee clients to another VLA

Extend the VLANs between the switches.

Create two device profiles. Apply one profile to ports connected to contractor clients, and apply the other profile to ports connected to employee clients.

5. Refer to the exhibit.

All of the switches shown in the exhibit are ArubaOS switches.

Where should the network administrator configure an IP helper address of 10.1.1.10?

on VLAN 2 on Switch-1

on VLAN 2 on Switch-3

on VLAN 1 on Switch-1

on VLAN 1 on Switch-2

6. What is the relationship between a wireless client's data rate and the throughput for the client's traffic?

The throughput is 90 percent of the data rate.

The throughput is equal to the data rate multiplied by the connection time, minus the headers' bytes.

The throughput is less than the data rate and also depends on factors such as number of clients in the cell.

The data rate and the throughput are equivalent.

7. Refer to the exhibit.

The network consists of two ArubaOS switches with routing disabled.

How should the network administrator configure the link between Switch A and Switch B to ensure that all hosts can communicate to all the other hosts within their respective VLANs?

tagged for VLAN 20 and tagged for VLAN 30

untagged for VLAN 10 and tagged for VLAN 30

tagged for VLAN 10 and tagged for VLAN 20

untagged for VLAN 10, untagged for VLAN 20, and tagged for VLAN 30

8. What is one benefit that Aruba AirWave can provide to a customer with ArubaOS switches?

It can audit switch firmware (software) and automate updates.

It can enable the switches to provide mobility controller functions for connected Instant APs (IAPs).

It can provide centralized authentication and authorization for users who log in to the switch CL

It can program the switches to dynamically adjust QoS settings to prioritize Skype for Business traffic.

9. An ArubaOS switch operates at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection carries untagged traffic. The administrator wants to use Telnet log in to the switch CLI.

How should the administrator contact the switch and log in?

Contact the switch at its default IP address 172.16.0.254/24 and log in without entering a password.

Contact the switch at its default IP address 192.168.1.1/24 and log in with me default password admin.

Contact the switch at its DHCP-assigned IP address and log in without entering a password.

Contact the switch at its DHCP-assigned IP address and log in with the default password aruba.

10. Refer to the exhibit.

A network administrator views the configuration files on an ArubaOS switch and sees the output in the exhibit. The administrator enters this command: Switch# boot system flash primary config config2 After the switch boots, the administrator makes some configuration changes and saves the configuration with the write memory command. The administrator then enters this command: Switch# boot After the switch boots, the configuration changes just made are not present.

How can the administrator restore the configuration with the changes?

Use the boot set-default command to configure the switch to use the secondary software. Then reboot the switch.

Reboot the switch and interrupt the boot process. Find the temporary file with the configuration changes and apply that file to the startup-config.

Rename the config2 file to config1. Then reboot the switch.

Use the startup-default command to configure the switch to use the config2 file with the primary software. Then reboot the switch.

Page 2 of 5

11. For which task does a network administrator need to access the enable context on an ArubaOS switch?

to view interface statistics

to view CPU statistics

to ping an IP address

to view configuration files

12. A network administrator prepares an ArubaOS switch to be monitored and managed by AirWave.

Which credentials are required for AirWave to change configuration settings on the switch?

RADIUS shared secret

SNMPv2c community with manager unrestricted privileges

Telnet or SSH password

SNMPv3c user in the ManagerPriv group

13. A company has an Aruba 5400R switch, switch 1, at the network core of its campus. This switch routes all traffic for the campus and is the RSTP root. The company now wants to add another Aruba 5400R switch to the core in order to enhance resiliency. The company wants to use the option that provides the best Layer 2 and Layer 3 resiliency and also the simplest setup.

What should the administrator do to add the new 5400R switch?

Add the new switch and migrate to MSTP with two instances.

Add the new switch and set up OSPF on all switches.

Add the new switch as a secondary root bridge in RST

Add the new switch as a standby member in a VSF fabric with switch 1.

14. Which settings should match on physical interfaces before a network combines them in a link aggregation?

speed and duplex mode

DSCP and media

speed and VLANs

LLDP TLVs and VLAns

15. Two switches are members of a Virtual Switching Framework (VSF) fabric.

Which statement correctly describes how the switches handle routing?

Only the commander runs routing protocols and builds the IP routing table, but it programs the standby member to route traffic.

Both members build their own IP routing tables, which they synchronize. Only static IP routing is supported with VS

Only the commander runs routing protocols and builds the IP routing table, and all routed traffic must pass through the commander.

Both members run routing protocols and build their own IP routing tables, and they synchronize the tables over VSF links.

16. A server connects to a port on an ArubaOS switch. The network administrator wants to ensure that the port remains forwarding during MSTP topology changes, and changes in the port status do not cause MSTP topology changes.

Which statement describes how the administrator can accomplish this?

The administrator can accept the default behavior of auto-edge.

The administrator can lower the port's root path cost to zero.

The administrator can manually disable STP on the edge port.

The administrator can configure the port as an MSTP master port.

17. Refer to the exhibit.

Endpoint A sends broadcast ARP requests. Where are these requests received?

at EndpointC

at EndpointB

at EndpointB, at EndpointC, and at EndpointD

at EndpointB and at EndpointC

18. A network administrator wants to be able to access an Aruba Instant cluster at the same IP address even if the current master fails.

How can the administrator achieve this goal?

Configure a VC IP address that is a reserved IP address in the AP's subnet.

Configure the AirWave IP address in the instant cluster System > Admin settings.

Assign static IP addresses, rather than DHCP ones, to all APs in the instant cluster.

Assign a static IP addresses, rather than a DHCP one, to the AP that is elected master.

19. A network administrator discovers and then authorizes several ArubaOS switches in Aruba AirWave. Immediately after the administrator authorizes the switches, AirWave cannot communicate with the switches anymore.

What should the administrator do to restore communication?

Change the SNMP and Telnet/SSH credentials in the AirWave global communication settings to match those on the switches.

Change the management level for the switches to Monitoring and Firmware Updates Only.

Specify the SNMP and Telnet/SSH credentials on the switches to update the individual communication settings on the switches.

Change the management level for the switches to Manage Read/Write.

20. A company has a single routing protocol environment.

What is one reason to use OSPF routing instead of static routing?

OSPF allows ArubaOS switches to use default routes, while static routes cannot use 0.0.0.0/0 as the destination network.

OSPF has a lower default administrative distance than static routing on ArubaOS switches.

OSPF reduces the risk of accidentally introducing routing loops, while static routing does not.

OSPF permits load sharing traffic over multiple routes, while static routing does not.

Page 3 of 5

21. Refer to the exhibit.

A network administrator installs a new aggregation and access layer in a campus network. All users in this area belong to the same VLAN. The administrator plugs the switches into the network with the factory default configurations.

Which protocol must the administrator configure to prevent broadcast storms?

MSTP

LLDP

OSPF

LACP

22. A network administrator is in the context in an ArubaOS switch CLI:

Switch (vlan10)#

The administrator wants to leave the configuration context with a single command/

Which command should the administrator enter?

logout

quit

exit

end

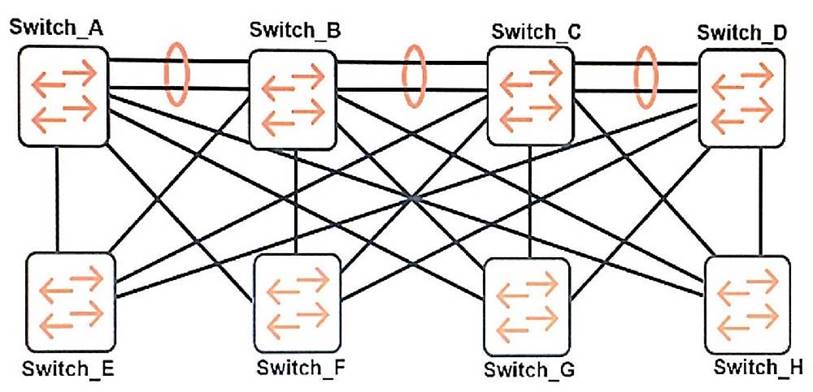

23. Refer to the exhibit.

MSTP is implemented in the topology shown in the exhibit, and all the switches are in the same region. The network administrator does not want to use the Internal Spanning Tree (IST) or instance 0 for production traffic.

How many non-IST spanning tree instances does this network need in order to have effective load sharing on the uplinks from the access switches?

two

three

four

five

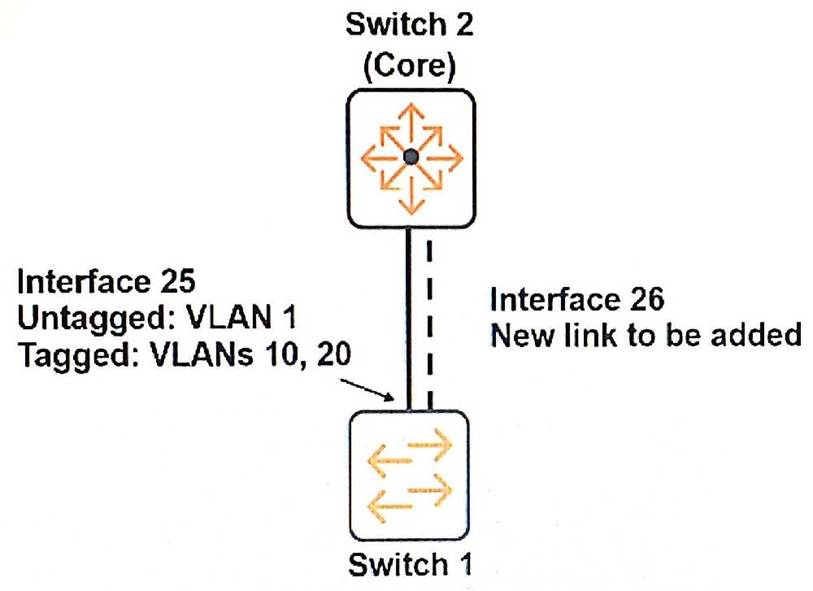

24. Refer to the exhibit.

Based on the exhibit, what is the problem?

An issue causes the spanning tree to converge and re-converge again and again.

Interface 25 on Switch-1 is incorrectly configured as an STP edge port and cause a loop to occur.

Interface 25 on Switch-1 does not support the correct VLANs and prevents the interface from receiving the correct STP role.

Switch-1 and another switch are configured with the same spanning tree priority and cause the root election to occur again and again.

25. Refer to the exhibit.

Exhibit 1.

Exhibit 2.

Exhibit 3.

How many MSTP regions exist in the topology shown in the exhibit?

one

two

three

four

26. An ArubaOS switch operates at factory default settings.

A network administrator enters this command:

Switch (config)# password operator plaintext mysecret.

How does the switch now control access to the CLI through the console port?

It forces users to enter no username and password operator to gain access to basic mode. Users must then enter password mysecret to reach enable mode.

It forces users du enter username operator and password mysecret to gain access to basic mode. Users can then reach enable mode without authenticating.

It allows users to access basic mode without logging in, but forces them to enter password mysecret to reach enable mode.

It forces users to enter no username and password mysecret to gain access to basic mode. Users can then reach enable mode without authenticating.

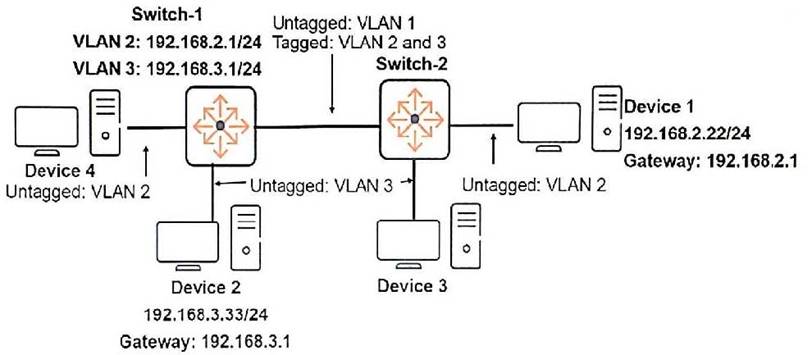

27. Refer to the exhibit.

Device 1 needs to send traffic to Device 2, and it sends an ARP request in preparation.

Which devices process this ARP request?

all devices in VLAN 2, 192.168.2.0/24 subnet

all devices connected to Switch-2

all devices in VLAN 3, 192.168.3.0/24 subnet

all devices in this network

28. A Virtual Switching Framework (VSF) fabric is configured to use LLDP-MAD.

Which action does the standby member take if it sends a probe but receives no response?

It sends a request packet to the commander to determine which ports should remain active.

It continues to function and assumes the role of commander.

It automatically changes its status to MAD inactive fragment.

It requests that the commander change its status to MAD inactive fragment.

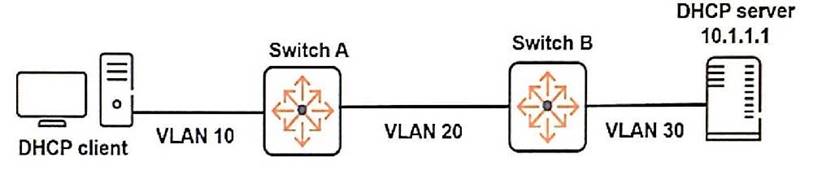

29. Refer to the exhibit.

Exhibit 1.

Exhibit 2.

A network administrator needs to set up DHCP relay in a switched network comprised of ArubaOS switches. Switch A and Switch B have the IP settings in Exhibit 2, and no static or dynamic routes. Switch B is the DCHP server's default gateway. The administrator correctly configures the IP helper address on Switch A.

However, when the DHCP client attempts to acquire an IP address in VLAN 10, the process fails.

What does the administrator need to do to solve this problem?

Configure a static route on Switch A, and enable IP Helper on Switch

Configure a static route on Switch

Configure a static route on Switch A and Switch B, and enable IP Helper on Switch

Configure a static route on Switch A and Switch

30. A network administrator configures OSPF in a network with ArubaOS switches. The administrator is concerned that a rogue device might connect to an access layer switch and introduce OSPF routes to the company's routing topology. The access VLANs do not contain additional routers.

What should the administrator do so switches do not form an adjacency with rogue devices on the access VLANs?

Implement BPDU filtering on interfaces assigned to these VLANs.

Configure the VLANs as passive OSPF interfaces.

Configure the interfaces with the highest OSPF DR priority.

Apply outbound routing policies to filter routes on the VLANs.

Page 4 of 5

31. A network administrator has copied new software to an ArubaOS switch and placed this software in the secondary flash location. The switch is currently booting from the primary location. The administrator wants the switch to start using the new software.

What should the administrator do to accomplish this?

Reboot the switch, which automatically causes the switch to use the newer software.

Execute the command to boot the system from the secondary flash.

Rename the secondary software as the primary software.

Copy the secondary software to the primary software slot.

32. Which security benefit does SNMPv3 offer that SNMPv2 does not offer?

SSL encryption

Scopes

Data integrity

RADIUS groups

33. The network administrator wants to know which device, type, and manufacturer is connected to port 10 on an Aruba 3810 switch.

Which command could provide this information?

show interface 10

show mac-address 10

show lacp peer 10

show lldp remote-device 10

34. Which benefit does Aruba Clarity in Aruba AirWave provide?

It provides an easily searchable network topology that includes physical wired, physical wireless, and virtual network infrastructure devices.

It helps managers use the AirWave Management Platform (AMP) with its context-specific help and links to additional resources.

It enables managers to view all configuration templates for APs, and switches from a single dashboard.

It provides at-a-glance views of issues such as DHCP request and 802.1X authentication failures to aid in troubleshooting.

35. A Virtual Switching Framework (VSF) fabric currently has two members and two physical 10GbE links in its VSF link.

Which administrative task can a network administrator perform on this VSF fabric when both members are online?

Remove a VSF member.

Add a new 40GbE link to the VSF link.

Remove one of the physical links in the VSF link.

Change the VSF link to use 40GbE links instead of 10GbE links.

36. Refer to the exhibit.

Based on the topology shown in the exhibit, which symptom does a network administrator see if the ArubaOS switches are in their factory default states?

Ports places in a blocking state

Mislearned MAC addresses

TTL expired in transit

Layer 3 loop

37. Refer to the exhibit.

Exhibit 1.

Exhibit 2.

PC1 cannot reach PC2.

Based on the exhibits, what could be the cause of this issue?

PC1 has the wrong IP address for its default gateway setting.

Router A has a direct route, instead of a static route, to 10.1.10.0/24.

The next hop address for the 10.1.20.0/24 route is incorrect.

Router A has an invalid subnet mask for the VLAN 1 subnet.

38. What does the traceroute command that is entered on an ArubaOS switch identify?

each physical device between the switch and a destination

the path to each router connected to the switch

each Layer 3 device between the switch and a destination

debug output tracing entries to the routing table

39. Refer to the exhibit.

Switch 1 shown in the exhibit is an ArubaOS switch that has an uplink to the network core on interface 25. The network administrator wants to add a link on interface 26.

The administrator creates a link aggregation with this command:

Switch1 (config)# trunk 25-26 trk1 lacp

What else must the administrator do to enable the Switch 1 link aggregation to successfully pass all traffic to the core?

Configure VLANs 10 and 20 as tagged VLANs on interface 26.

Configure VLANs 10 and 20 as tagged VLANs on trk1.

Enable BPDU filtering on interface 26.

Enable LACP in active or passive mode on interfaces 25 and 26.

40. Refer to the exhibit.

A network administrator wants to set up a link aggregation between two switches, as shown in the exhibit. The link aggregation must meet these requirements:

Protects against misconfiguration

Can be configured with VLAN and other settings.

Which type of link aggregation should the administrator create?

distributed (trunk)

dynamic LACP

static LACP

manual (trunk)

Page 5 of 5

41. Refer to the Exhibit:

Which issue could cause the Blocked status on A2?

A1 and A2 are connected to different switches.

A1 and A2 use different trunk load balancing modes.

A1 and A2 have spanning tree enabled on the link aggregation.

A1 and A2 support different VLANs

42. Refer to the exhibit.

Assume that Student A's ARP table is empty. Student A is preparing to send an FTP packet to FTP Server B and needs to discover the proper destination MAC address.

For which IP address does Student A send an ARP request?

10.1.10.1

10.1.10.87

10.1.2.2

10.1.20.1

43. An ArubaOS switch provides PoE+ several Aruba APs. Users might also connect PoE devices to the is switch. In a situation where the switch PoE capacity is exceeded, the network administrator wants to ensure that the switch continues to power the IPs in preference to other devices.

What should the administrator do to achieve this goal?

Make sure that LLDP MED is enabled on both switch ports and the APs

Set the PoE allocation on the ports connected to APs to the maximum value permitted by POE+.

Set the POE class for the ports connected to APs to Class 5.

Set the PoE priority for port connected to APs to critical.

44. A network administrator wants to use Aruba AirWave to manage Aruba 3810 Series switches deployed at the campus access layer.

How does AirWave determine which configuration template to apply to these switches?

based on the global group associated with their group

based o their lowest level subfolder

based on their group

based on their top level folder
