Company A has noticed abnormal behavior targeting their SQL server on the network from a rogue IP address. The company uses the following internal IP address ranges: 192.10.1.0/24 for the corporate site and 192.10.2.0/24 for the remote site. The Telco router interface uses the 192.10.5.0/30 IP range.
Company A has noticed abnormal behavior targeting their SQL server on the network from a rogue IP address. The company uses the following internal IP address ranges: 192.10.1.0/24 for the corporate site and 192.10.2.0/24 for the remote site. The Telco router interface uses the 192.10.5.0/30 IP range.
Instructions: Click on the simulation button to refer to the Network Diagram for Company
A . Click on Router 1, Router 2, and the Firewall to evaluate and configure each device.

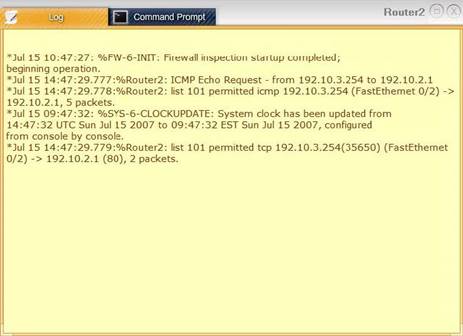

Task 1: Display and examine the logs and status of Router 1, Router 2, and Firewall interfaces.
Task 2: Reconfigure the appropriate devices to prevent the attacks from continuing to target the SQL server and other servers on the corporate network.
Answer:
We have traffic coming from two rogue IP addresses: 192.10.3.204 and 192.10.3.254 (both in the 192.10.30.0/24 subnet) going to IPs in the corporate site subnet (192.10.1.0/24) and the remote site subnet (192.10.2.0/24). We need to Deny (block) this traffic at the firewall by ticking the following two checkboxes:
The task says to ….Task 1: Display and examine the logs and status of Router 1, Router 2, and Firewall interfaces.
But I don’t see that as part of the solution….
