Cisco 400-051 CCIE Collaboration Online Training

Question #31

Which H.245 information is exchanged within H.225 messages in H.323 Fast Connect?

A . Terminal Capability Set
B . Open Logical Channel
C . Master-Slave Determination
D . Call Setup
E . Call Progress

Question #32

Which two compression formats for high-definition video have technical content that is identical to H.264? (Choose two.)

A . MPEG-4 Part 10
B . MPEG-4 Part 14
C . MPEG-2 Part 7
D . AVC
E . VC3
F . VP8

Reveal Solution Hide Solution

Question #33

Refer to the exhibit.

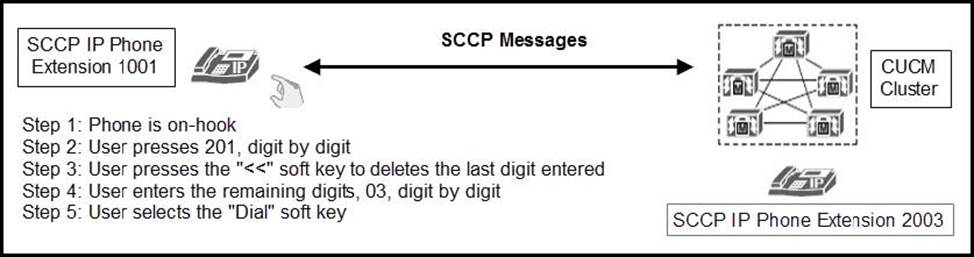

A user is going through a series of dialing steps on an SCCP IP phone (extension 1001) to call another SCCP IP phone (extension 2003). Both phones are registered to the same Cisco Unified Communications Manager cluster.

Which user inputs are sent from the calling IP phone to the Cisco Unified Communications Manager, in forms of SCCP messages, after the user pressed the Dial softkey? Note that the commas in answer choices below are logical separators, not part of the actual user input or SCCP messages.

A . A separate SCCP message is sent to Cisco Unified Communications Manager for each of the following user inputs: 2, 0, 0, 3.
B . A separate SCCP message is sent to Cisco Unified Communications Manager for each of the following user inputs: 2, 0, 1, <<, 0, 3.
C . A single SCCP message is sent to Cisco Unified Communications Manager to report that digits 2003 have been dialed.
D . A single SCCP message is sent to Cisco Unified Communications Manager to report that digits 201<<03 have been dialed.
E . A separate SCCP message is sent to Cisco Unified Communications Manager for each of the following user inputs: 2, 0, 1, <<, 2, 0, 0, 3.

Reveal Solution Hide Solution

Question #34

How are DTMF digits transported in RFC 2833?

A . In the RTP stream with the named telephone events payload format.
B . In the RTP stream with the regular audio payload format.
C . In SIP NOTIFY messages.
D . In SIP INFO messages.
E . In SIP SUBSCRIBE messages.

Reveal Solution Hide Solution

Question #35

Refer to the exhibit.

Which DTMF relay method is advertised when the originating SIP gateway sends an INVITE message with a Call-Info header shown?

A . RFC 2833
B . SIP INFO
C . SIP NOTIFY
D . SIP KPML
E . In-band audio

Reveal Solution Hide Solution

Question #36

Refer to the exhibit.

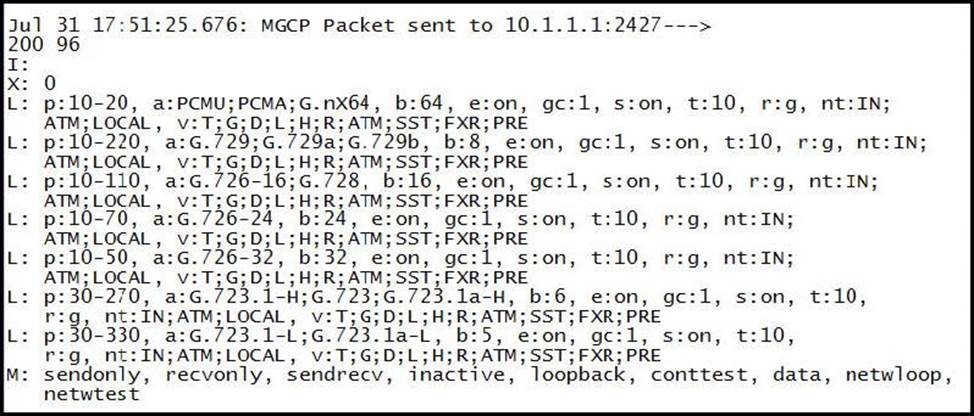

You received this debug output to troubleshoot a Cisco IOS MGCP gateway problem at a customer site.

What is the purpose of this message?

A . The MGCP gateway uses this message to respond to an RQNT message from Cisco Unified Communications Manager.
B . The MGCP gateway uses this message to respond to an AUCX message from Cisco Unified Communications Manager.
C . The MGCP gateway uses this message to respond to an AUEP message from Cisco Unified Communications Manager.
D . The MGCP gateway uses this message to respond to a DLCX message from Cisco Unified Communications Manager.
E . The MGCP gateway uses this message to respond to an NTFY message from Cisco Unified Communications Manager.

Reveal Solution Hide Solution

Question #37

Refer to the exhibit.

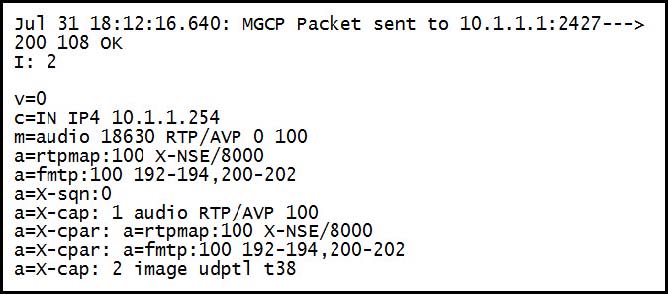

You received this debug output to troubleshoot a Cisco IOS MGCP gateway call quality issue at a customer site.

Which statement about this message is true?

A . The MGCP gateway is responding to an RQNT message from Cisco Unified Communications Manager to poll the call statistics of an active call.
B . The MGCP gateway is responding to an AUEP message from Cisco Unified Communications Manager to poll the call statistics of a terminating call.
C . The MGCP gateway is responding to an MDCX message from Cisco Unified Communications Manager during a call setup.
D . The MGCP gateway is responding to an AUCX message from Cisco Unified Communications Manager about an active call.
E . The MGCP gateway is responding to a DLCX message from Cisco Unified Communications Manager about a terminating call.

Reveal Solution Hide Solution

Question #38

Refer to the exhibit.

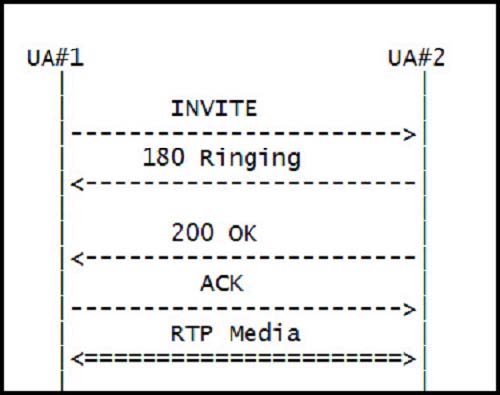

If this SIP call is initiated using delayed offer, which SIP message will UA#2 use to communicate its media capability to UA#1?

A . INVITE
B . 180 Ringing
C . 200 OK
D . ACK
E . RTP Media

Reveal Solution Hide Solution

Question #39

To which SIP response category does 301 Moved Permanently belong?

A . Provisional
B . Successful
C . Redirection
D . Client Failure
E . Server Failure

Reveal Solution Hide Solution

Question #40

Refer to the exhibit.

How many SIP signaling transaction(s) took place in this SIP message exchange between two SIP user agents?

A . 1
B . 2
C . 3
D . 4
E . 5
F . 6

Reveal Solution Hide Solution

Correct Answer: C
C

Explanation:

During the establishment, maintenance and termination of a SIP session, signaling messages are exchanged between the two SIP endpoints. There are two different kinds of signaling “conversations” that those messages take part in: transactions and dialogs. A transaction is a SIP message exchange between two user-agents that starts with a request and ends with its final response (it can also contain zero or more provisional responses in between). For example, during the termination of a SIP session, one user releases the call by sending a BYE request and the other party replies back with a 200 OK response. This message exchange is called a transaction. But what happens in the case of the INVITE request? The establishment of a SIP session starts basically with an INVITE request and is considered as completed upon the receipt of the ACK. In this case, the transaction starts with the INVITE request and ends with the 200 OK, so the ACK is not part of the transaction. The ACK can be considered as a transaction on its own.

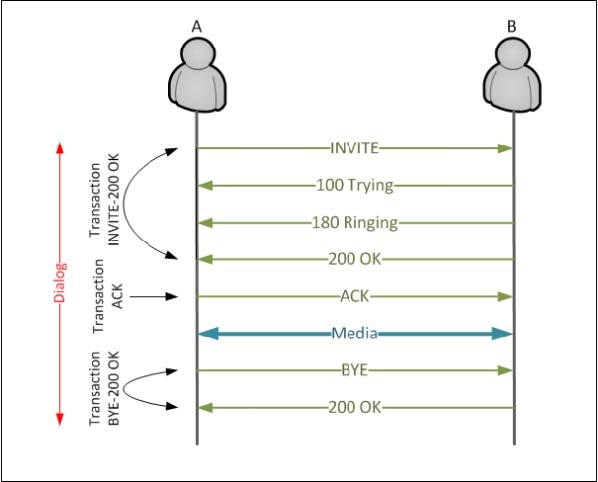

However, when the final response to an INVITE is not a 2xx response, then the ACK is considered as part of the transaction. A dialog is a complete exchange of SIP messages between two user-agents. That means that transactions are actually parts of a dialog. For example, in the case of a SIP session establishment, a dialog starts with the INVITE200 OK transaction, continues with the ACK and ends with the BYE-200 OK transaction. The picture below depicts the dialog and transactions that take place during the establishment of a SIP session:

Note: There can also be subsequent requests that belong to the same dialog, such as a BYE or a re-INVITE message. As out-of-dialog requests are considered messages such as an initial INVITE request for a new session or an OPTIONS message for checking capabilities. There are different SIP headers/parameters that identify the dialogs and transactions, and they will be analyzed in later posts.

References: https://telconotes.wordpress.com/2013/03/13/sip-transactions-vs-dialogs/
