Cisco 352-001 Cisco Certified Design Expert Qualification Exam Online Training
Cisco 352-001 Online Training
The questions for 352-001 were last updated at Oct 23,2025.
- Exam Code: 352-001
- Exam Name: Cisco Certified Design Expert Qualification Exam
- Certification Provider: Cisco
- Latest update: Oct 23,2025

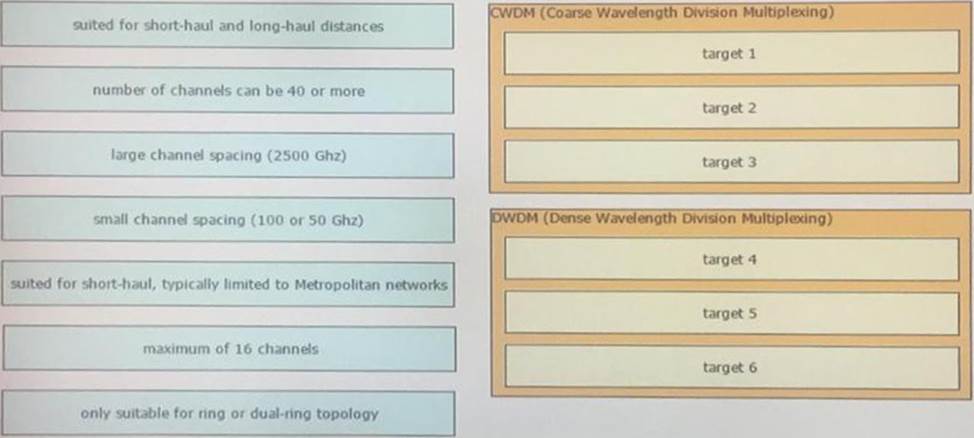

DRAG DROP
Drag and drop the optical technology design characteristics on the left to the correct optical technologies on the right. Not all options are used
Refer to the exhibit.
A new high availability DB sever cluster is installed in the network. these two servers require high bandwidth and low latency Layer 2 connectivity for database replication.
Which solution supports these requirements?
- A . Add two new links between SW1 and SW2 configured as LACP trunk with STP
- B . Add secondary links to REP segments 1 and 2
- C . Add two new links between SW1 and SW2 configured as REP segment 3
- D . Add two new links between SW1 and SW2 configured as REP segments 1 and 2 respectively
A network engineering team is designing a lab network for a customer demonstration. The design engineer wants to show that the resiliency of the MPLS Traffic Engineering Fast Reroute solution has the same failover Tailback times as a traditional SONET/SDH network (around 50 msec).
Which type of MPLS TE tunnel must be considered for this demonstration to address the link failure and node failure within the lab network?
- A . next-hop tunnel
- B . TE backup tunnel
- C . next-next-hop tunnel
- D . FRR backup tunnel

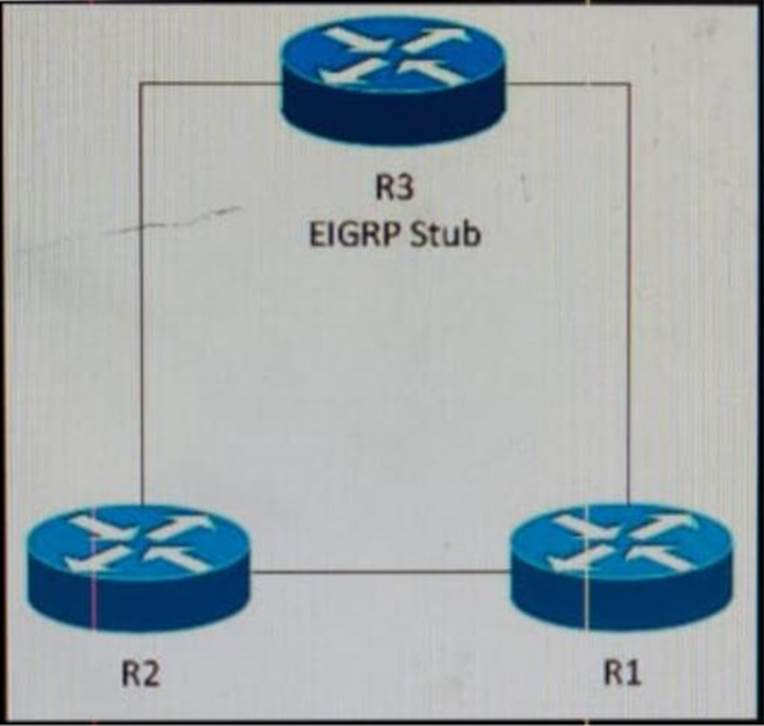

Refer to the exhibit.
In which two ways is this network impacted if link instability exists between R1 and R2? (Choose two)
- A . R1 will have routes in its routing table that originate from R2 and R3.
- B . R3 will have routes in its routing table that originate from R1 and R2.
- C . R2 will have routes in its routing table that originate from R1 and R3.
- D . R3 will be transit for traffic between R1 and R2.
- E . R3 will not be transit for traffic between R1 and R2.
A large enterprise company is redesigning their WAN infrastructure and has these design requirements
Which two design solutions ensure that the enterprise access routers reach all devices in this enterprise network? (Choose two)
- A . Configure the access routers to send a default route to the MPLS network.
- B . Summarize the routes on the MPLS WAN interfaces of the distribution routers.
- C . Use prefix lists on the distribution routers to control which routes are sent to the MPLS network.
- D . Configure the distribution routers to send a default route to the MPLS network.
- E . Configure null routes and aggregate routes for the prefixes in your network on the distribution routers.
Which main IoT migration aspect must be reviewed for a manufacturing plant?
- A . Ethernet Switches
- B . Security
- C . Wi-Fi Infrastructure
- D . Sensors
- E . Applications
You are the SAN designer for company XYZ. Due to budget constraint, there is increased pressure by management to further optimize server utilization by implementing virtualization technologies on all servers and increase virtual machines density. Faced with some SAN challenges, the server team requests your help in the design and implementation of the SAN in the new virtualized environment.
In which two ways can NPIV be used in your proposed design?
- A . NPIV is used to define and bind multiple virtual WWNs (Vls) to a single physical pWWN
- B . NPIV is used to assign multiple FCIDs to a single N Port
- C . NPIV can be used to allow multiple applications on the same port to use different lDs in the same VSAN
- D . NPIV can be used to allow hosts be members of different zones

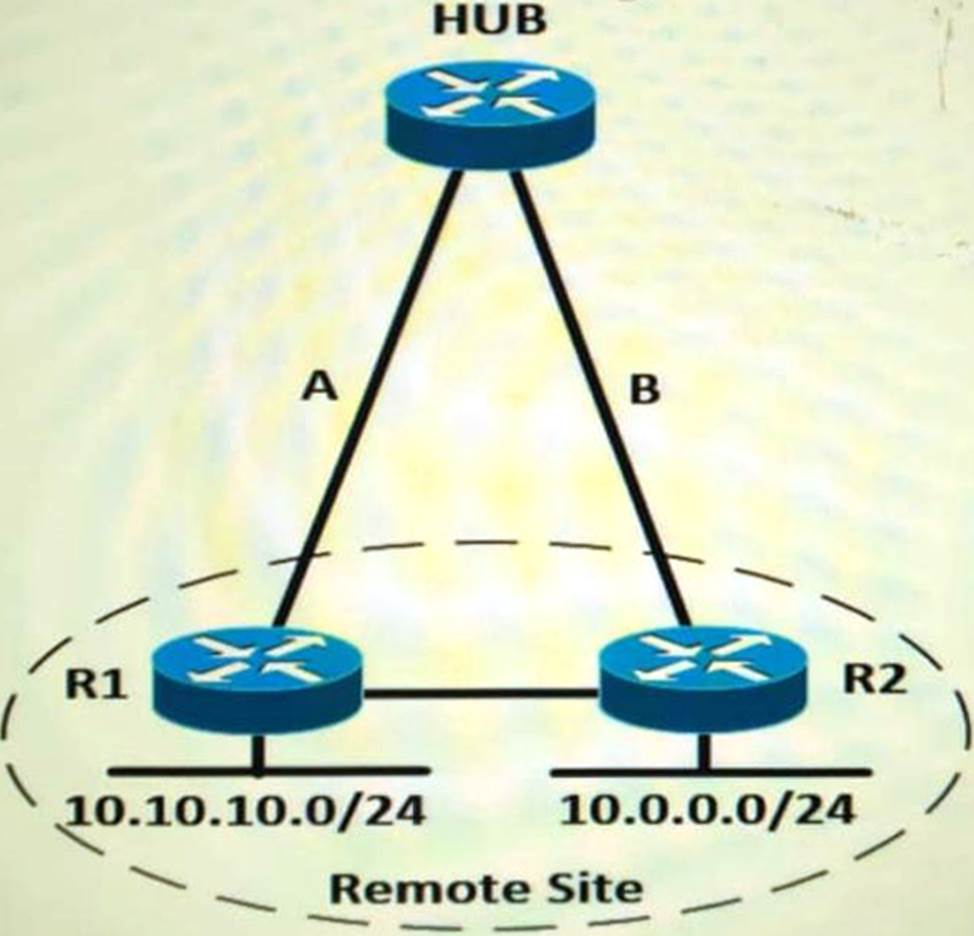

Refer to the exhibit.
A customer runs EIGRP and has remote routers with EIGRP stub configured. The customer tests the redundancy by shutting down the B link, and surprisingly the 10.0.0.0/24 subnet is no longer accessed by the hub router.
Which action resolves this issue?
- A . Wait for a few seconds, after the EIGRP dead timer expired between R2 and hub, the 10.0 .0.0/24 can automatically be accessed by the hub router via the R1 router
- B . Apply the Stub Route Leaking feature
- C . Remove summarization from all routers
- D . Remove the EIGRP stub option, because it is not possible to configure two EIGRP stub routers on the same site
When network summaries are created for access networks in a network design, how does it change the behavior of the shortest Path First (spf) running in a backbone area?
- A . There would be fewer incremental SPFs.
- B . There would be fewer partial SPFs.
- C . There would be fewer full SPFs.
- D . There would be no change with the SPFs.
Which three processes are part of the ITILv3 Service Operation? (Choose three)
- A . Release and deployment management
- B . Problem management
- C . Incident management
- D . Event management
- E . Service-level management
- F . Change management
