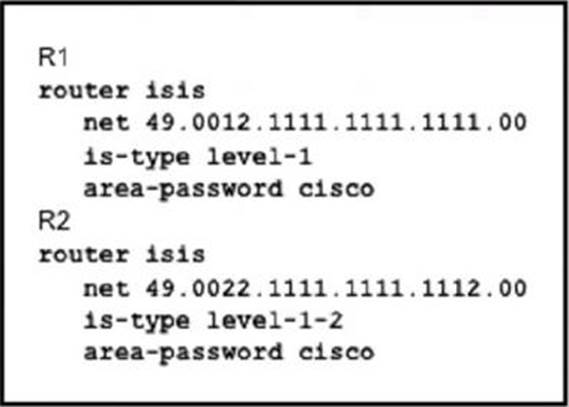

Refer to the exhibit:
What is the effect of this configuration?
- A . The two routers fail to form a neighbor relationship because their system IDs are different.
- B . The two routers successfully form a neighbor relationship
- C . The two routers fail to form a neighbor relationship because the authentication configuration is missing
- D . The two routers fail to form a neighbor relationship because they have different ISIS area types.

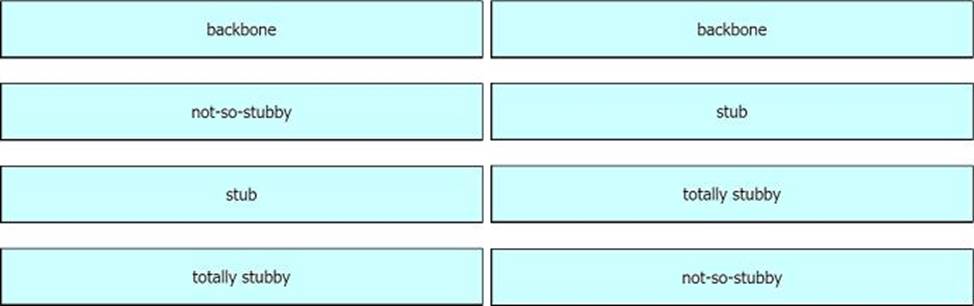

DRAG DROP
Drag and drop the OSPF area types from the left onto the correct statements on the right
Refer to the exhibit:
What does this value mean when it is received in XML?
- A . It shows the ending of the script
- B . It indicates a break in a sequence
- C . It indicates a value assigned by a network administrator to tag a route
- D . It means a data field is blank
Refer to the exhibit:
Which effect of this configuration is true?
- A . it creates a pseudowire class named Cisco
- B . It enables tagging for VLAN 12 on the interface
- C . It enables MPLS on the interface
- D . It enables AToM on interface gigabitethemet1/0

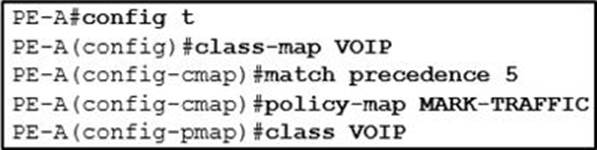

Refer to the exhibit:
Which command is used to complete this configuration for QoS class-based marking?
- A . PE-A(config-pmap-c)#set dscp ef
- B . PE-A(config-pmap-c)#fair-queue
- C . PE-A(config-pmap-c)#random-detect
- D . PE-A(config -pmap-c)#priority

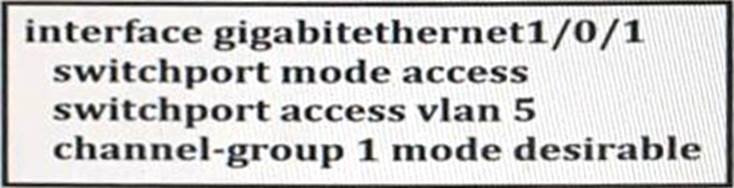

Refer to the exhibit:
An engineer is preparing to implement link aggregation configuration.
Which statement al about this configuration is true?
- A . The switch port actively sends packets to negotiate an EtherChannel using PAgP
- B . The switch port accepts LACP and PAgP packets from a connected peer and negotiate an EtherChannel using the common EtherChannel mode.
- C . The switch port passively negotiates an EtherChannel if it receives PAgP packets from a connected peer
- D . The switch port negotiates an EtherChannel if it receives LACP packets from a connected peer

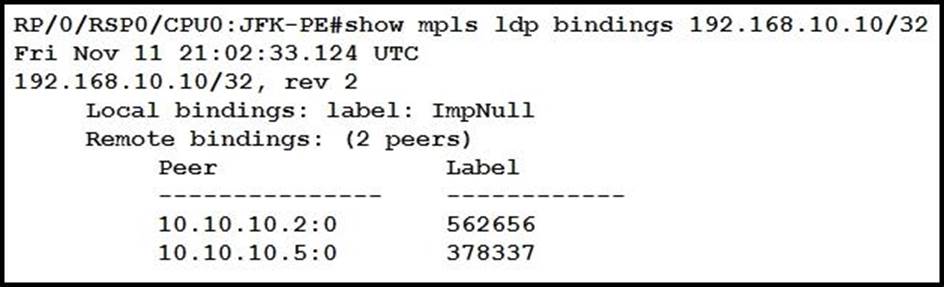

Refer to the exhibit:
After implementing a new design for the network, a technician reviews the pictured CLI output as part of the MOP.
Which two statements describe what the technician can ascertain from the ImpNull output? (Choose two.)
- A . Label 0 is used for the prefix displayed but will not be part of the MPLS label stack for packets destined for 192 168.10.10.
- B . Ultimate Hop Popping is in use for the prefix displayed.
- C . Label 0 is used for the prefix displayed and will be part of the MPLS label stack for packets destined for 192.168.10.10
- D . Penultimate Hop Popping is in use for the prefix displayed
- E . Label 3 is in use for the prefix displayed and will be part of the MPLS label stack for packets destined for 192.168.10.10

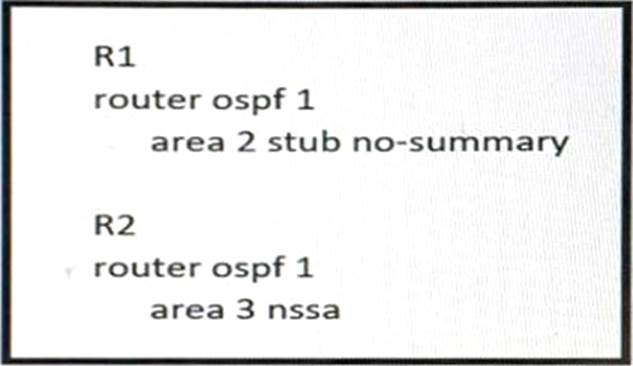

Refer to the exhibit:
In which way does router R1 operate differently than router R2?
- A . R1 sends LSA type 2 only, while R2 sends type 1 and type 7 LSAs
- B . R1 sends LSA types 1 and 2, while R2 sends type 1. 2. and 7 LSAs
- C . R1 sends LSA type 2 only and R2 sends LSA type 1 only
- D . R1 sends LSA types 5 and 7, while R2 sends type 1, 2, and 7 LSAs
A network engineer must enable the helper router to terminate the OSPF graceful restart process if it detects any changes in the LSA.
Which command enables this feature?
- A . nsf ietf helper disable
- B . nsf cisco enforce global
- C . nsf ietf helper strict-lsa-checking
- D . nsf Cisco helper disable

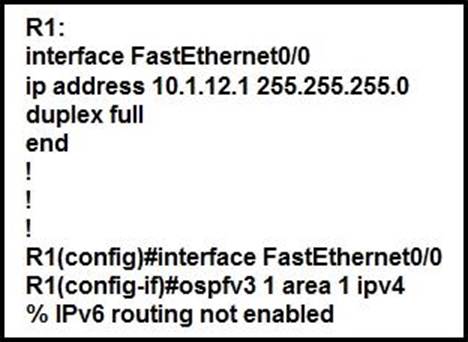

Refer to the exhibit:
A network engineer is implementing an OSPF configuration Based on the output, which statement is true?
- A . In the ospfv3 1 area 1 ipv4 command, area 0 must be configured instead of area 1.
- B . OSPFv3 does not run for IPv4 on FastEthemet0/0 until IPv6 routing is enabled on the router and IPv6 is enabled on interface Fastfc.thernet0/0
- C . OSPFv3 cannot be configured for IPv4; OSPFv3 works only for IPv6.
- D . IPv6 routing not enabled" is just an informational message and OSPFv3 runs for IPv4 on interface FastEthernet0/0 anyway
