Cisco 300-510 Implementing Cisco Service Provider Advanced Routing Solutions (SPRI) Online Training
Cisco 300-510 Online Training
The questions for 300-510 were last updated at Sep 08,2025.
- Exam Code: 300-510
- Exam Name: Implementing Cisco Service Provider Advanced Routing Solutions (SPRI)
- Certification Provider: Cisco
- Latest update: Sep 08,2025
Refer to the exhibits.
All links inside the network are configured at a default cost of one inside the fully converged OSPF domain.
Given the configuration from XR1, which interface does traffic from XR1 that is destined to the loopback interface of XR6 select for the exiting interface?
- A . Interface GigabitElhemet 0/0. The tie breaker of the node index priority is lower and trumps the path cost.
- B . Interface GigabitEthernet 0/1. The tie breaker of the path cost being lower. The node index priority does not impact this selection process.
- C . Interface GigabitEthernet 0/1. The tie breaker of the node index priority is lower and trumps the path cost.
- D . Interface GigabitEthernet 0/0. The tier breaker of the path cost being lower. The node index priority does not impact this selection process.
After an engineer configures BGP in R1, it starts receiving this message
*Jun 29 13:30:50.122: %BGP-5-ADJCHANGE: neighbor 192.168.10.1 Down User reset
Jun 29 13:30:52.341: %BGP-3-NOTIFICATION: sent to neighbor 192.168.10.1 2/6 (unacceptable hold time) 0 bytes
Which action makes the peering come back up again?
- A . Make a soft reset to the peer.
- B . Set up a minimum hold-down timer higher.
- C . Set up a hello timer higher.
- D . Set up a hold-down timer higher.
Refer to the exhibits.
A network operator is troubleshooting packet loss seen from the R1 loopback interface to the R2 loopback interface over the core network. The operator is attempting to identify the next leg in the path from PE1.
Which interface and label path should the operator investigate next?
- A . PE1 C Gi0/0/0/3 – forwarding label 24002
- B . PE1 C Gi0/0/0/2 – forwarding label 24002
- C . PE1 C Gi0/0/0/3 – forwarding label 24001
- D . PE1 – Gi0/0/0/2 – forwarding label 24001
Refer to the exhibit.
Routers R1, R2. R3, and R4 have been configured to run OSPF. and router R5 is running EIGRP Traffic from R1 to R5 is expected to pass via R4. but OSPF routing has calculated the best path via R3.
Which action corrects the problem?
- A . Configure R3 to use metric-type 1 with a higher metric than R4.
- B . Configure R1 with a static route to the R5 networks and set R5 as the next hop.
- C . Reconfigure R1 in Area 0.
- D . Change the metric-type value on R3 to 2.

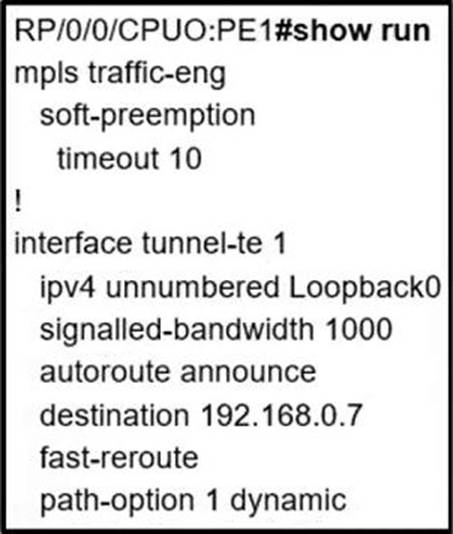

Refer to the exhibit.
A network operator is troubleshooting TE tunnels and discovers that the soft preemption is not working as desired.
Where should the soft preemption be applied to solve the issue?
- A . on the tail-end device for tunnel-te1 192.168.0.7
- B . under the tunnel-te1 interface on PE1
- C . explicitly for tunnel-te 1 under the Cisco MPLS TE configuration mode after the timeout setting
- D . Under the interface Loopback0 necessary for this deployment type.

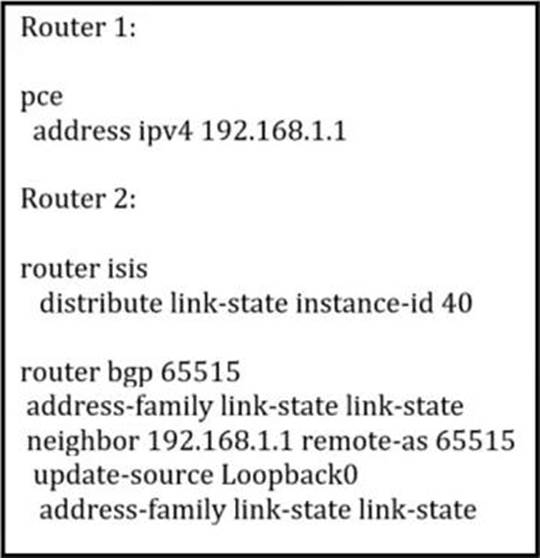

Refer to the exhibit.
What is the relationship between Router 1 and Router 2?
- A . Router 1 centrally learns the topology of the network to aid in SR-TE path selection, and Router 2 is a node that feeds Router 1 topology information.
- B . Router 1 and Router 2 are participating in SR-TE tunnels and are both head-end routers.
- C . Router 1 and Router 2 centrally learn the topology of the network to aid in SR-TE path selection for peers.
- D . Router 2 is the head-end router in an SR-TE tunnel, and it is learning topology of the network from the PCE enabled on Router 1.
Which command is used to enable BIDIR-PIM under global configuration mode for Cisco IOS XE Software?
- A . ip pim bidir ip
- B . multicast-routing
- C . ipv4 pim bidir-enable
- D . Ip pim bidlr-enable
What is the purpose of a BGP confederation?
- A . It limits the number of routes a device receives from its peers, which reduces CPU load.
- B . It improves service by increasing the number of simultaneous iBGP peering sessions.
- C . It redirects traffic away from route reflectors, which reduces their operating load.
- D . It reduces the number of iBGP peers and increases stability.
What is the characteristic of enabling segment routing for IGPs?
- A . Segment routing must first be enabled under the routing process and then globally.
- B . Segment routing must first be enabled globally and then under the routing process.
- C . Segment routing must be enabled only globally.
- D . Segment routing must be enabled only under the routing process.
Refer to the exhibit.
While configuring router 2 with all the default values, a network engineer cannot see any route received in router 1.
How should the engineer solve the issue?
- A . Set up a priority different than 0 in the interface.
- B . Modify the router ID to be the interface IP on the serial.
- C . Modify the IP address or mask of the interface to a valid one.
- D . Set the network type in S1/0 to point-to-point.
