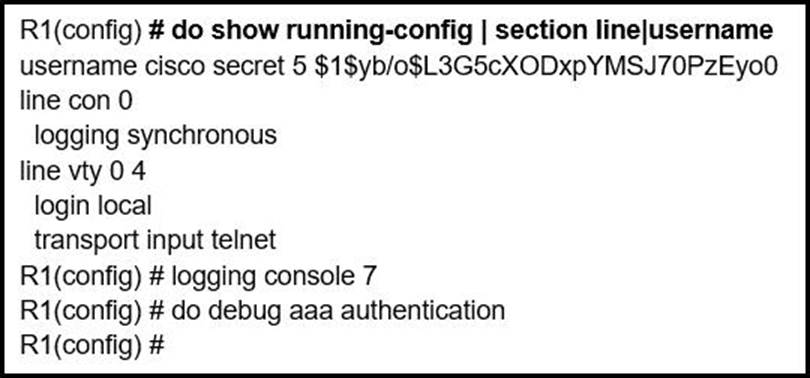

Refer to the exhibit.
An administrator that is connected to the console does not see debug messages when remote users log in.
Which action ensures that debug messages are displayed for remote logins?
- A . Enter the transport input ssh configuration command.
- B . Enter the terminal monitor exec command.
- C . Enter the logging console debugging configuration command.
- D . Enter the aaa new-model configuration command.

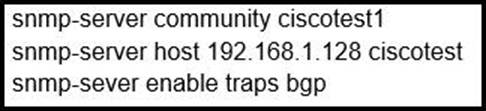

Refer to the exhibit.
Network operations cannot read or write any configuration on the device with this configuration from the operations subnet.
Which two configurations fix the issue? (Choose two.)
- A . Configure SNMP rw permission in addition to community ciscotest.
- B . Modify access list 1 and allow operations subnet in the access list.
- C . Modify access list 1 and allow SNMP in the access list.
- D . Configure SNMP rw permission in addition to version 1.
- E . Configure SNMP rw permission in addition to community ciscotest 1.

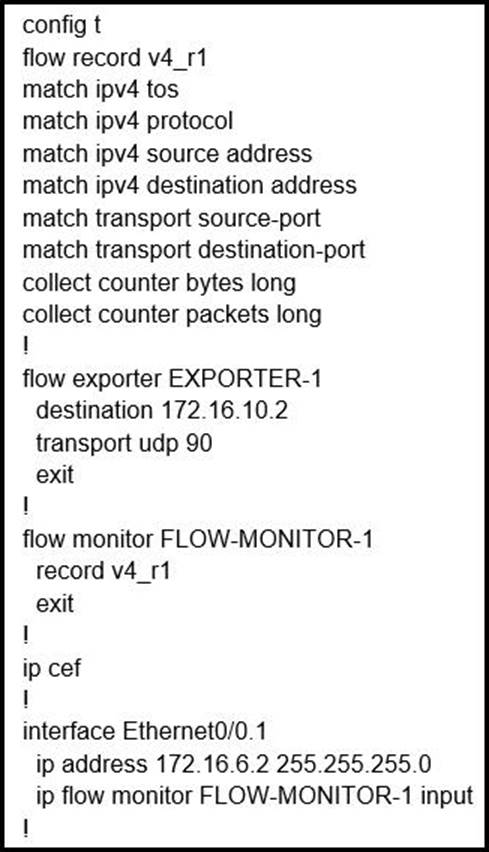

Refer to the exhibit.
Why is the remote NetFlow server failing to receive the NetFlow data?
- A . The flow exporter is configured but is not used.
- B . The flow monitor is applied in the wrong direction.
- C . The flow monitor is applied to the wrong interface.
- D . The destination of the flow exporter is not reachable.

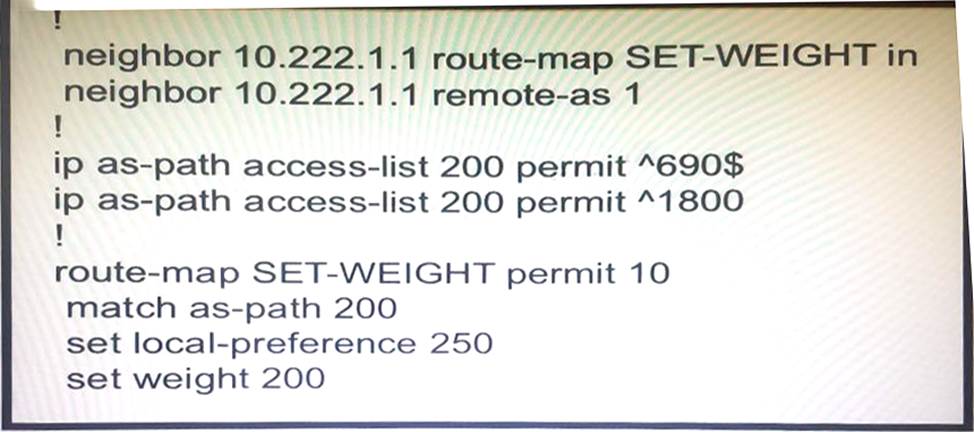

Refer to the exhibit.
A router receiving BGP
routing updates from multiple neighbors for routers in AS 690.
What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1.1?
- A . The local preference value in another neighbor statement is higher than 250.
- B . The local preference value should be set to the same value as the weight in the route map.
- C . The route map is applied in the wrong direction.
- D . The weight value in another neighbor statement is higher than 200.

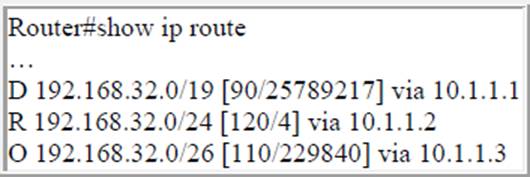

Refer to the exhibit.
Refer to the exhibit. an engineer is trying to get 192.168.32.100 forwarded through 10.1.1.1, but it was forwarded through 10.1.1.2.
What action forwards the packets through 10.1.1.1?
- A . Configure EIGRP to receive 192.168.32.0 route with lower admin distance.
- B . Configure EIGRP to receive 192.168.32.0 route with longer prefix than /19.
- C . Configure EIGRP to receive 192.168.32.0 route with lower metric.
- D . Configure EIGRP to receive 192.168.32.0 route with equal or longer prefix than /24.
What is a limitation of IPv6 RA Guard?
- A . It is not supported in hardware when TCAM is programmed
- B . It does not offer protection in environments where IPv6 traffic is tunneled.
- C . It cannot be configured on a switch port interface in the ingress direction
- D . Packets that are dropped by IPv6 RA Guard cannot be spanned

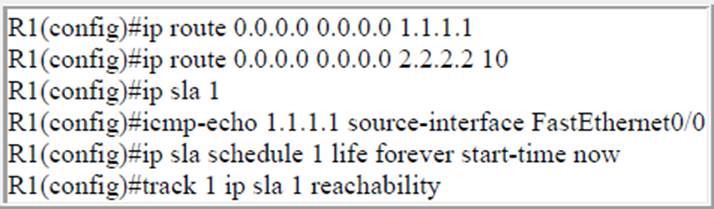

Refer to the exhibit.
An IP SLA is configured to use the backup default route when the primary is down, but it is not working as desired.
Which command fixes the issue?
- A . R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2 10 track 1
- B . R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2
- C . R1(config)#ip sla track 1
- D . R1(config)# ip route 0.0.0.0.0.0.0.0.1.1.1.1 track 1
Which label operations are performed by a label edge router?
- A . SWAP and POP
- B . SWAP and PUSH
- C . PUSH and PHP
- D . PUSH and POP

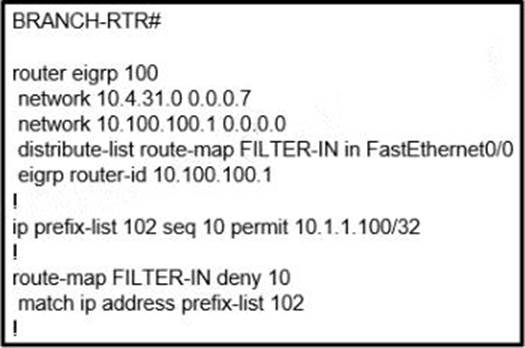

Refer to the exhibit.
A junior engineer updated a branch router configuration. Immediately after the change, the engineer receives calls from the help desk that branch personnel cannot reach any network destinations.
Which configuration restores service and continues to block 10.1.1.100/32?
- A . route-map FILTER-IN deny 5
- B . ip prefix-list 102 seq 15 permit 0.0.0.0/32 le 32
- C . ip prefix-list 102 seq 5 permit 0.0.0.0/32 le 32
- D . route-map FILTER-IN permit 20

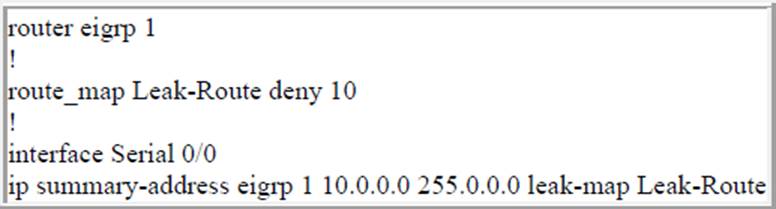

An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback 0 with an IP of 10.1.1.1.255.255.255.252 along with the summary route. After finishing configuration, the customer complained not receiving summary route with specific loopback address.
Which two configurations will fix it? (Choose two.)
- A . Configure access-list 1 permit 10.1.1.0.0.0.0.3.
- B . Configure access-list 1 permit 10.1.1.1.0.0.0.252.
- C . Configure access-list 1 and match under route-map Leak-Route.
- D . Configure route-map Leak-Route permit 10 and match access-list 1.
- E . Configure route-map Leak-Route permit 20.
